| Frame |
Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, kickstand mount |
| Fork |
Verve+ LT alloy, threadless steel steerer, ThruSkew QR |
| Hub front |
Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| Skewer front |
132x5 mm QR, ThruSkew |

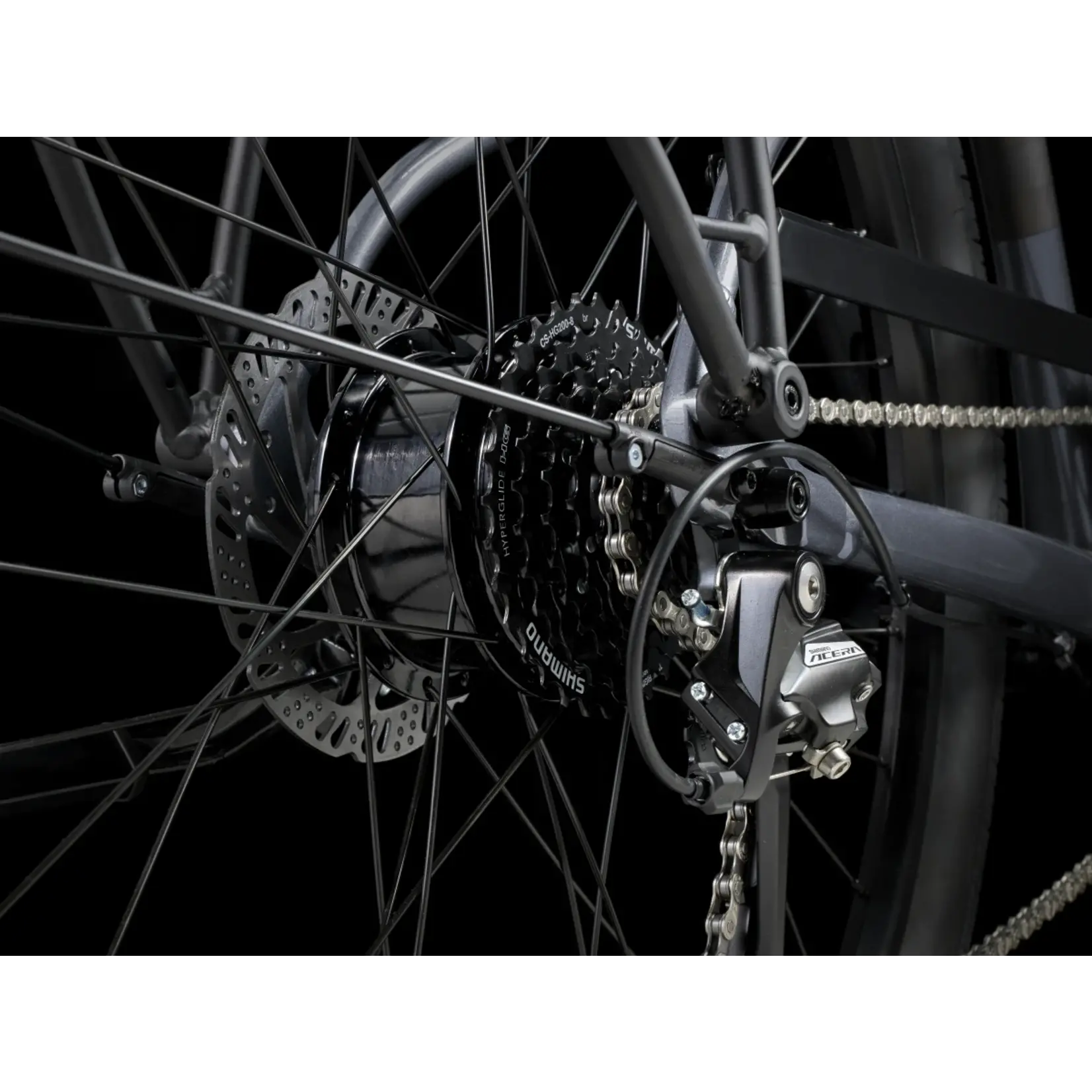

| Hub rear |
Hyena hub drive motor, 40 Nm, 250 W |
| Rim |
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
| Spokes |
14 g stainless steel, black |
| Tyre |
Bontrager H2 Comp, wire bead, 30 tpi, 27.5x2.00" |
| Max tyre size |
27.5x2.00" |

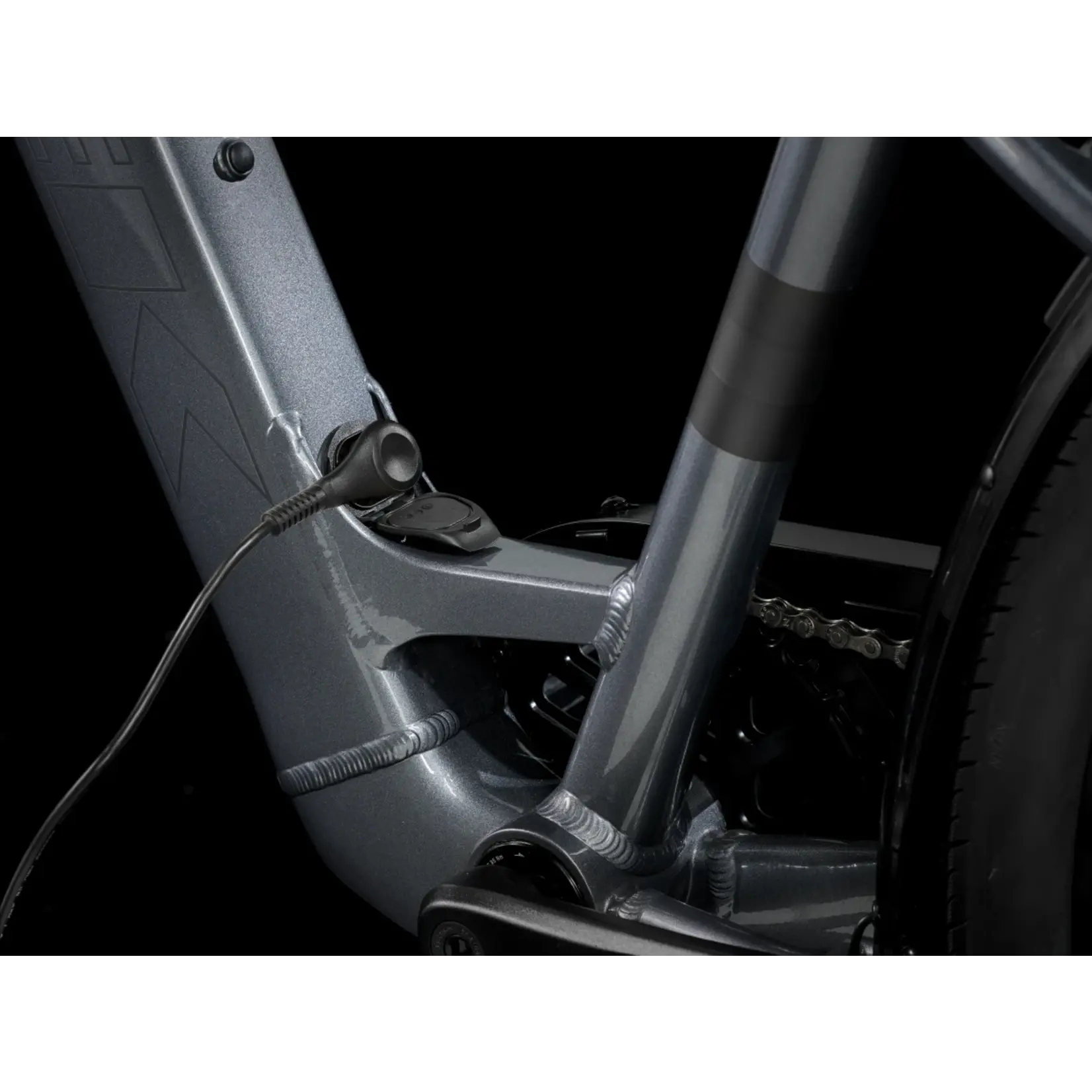

| Battery |
250 Wh, integrated in down tube |
| Charger |
2A, 42V output, 100V–240V AC input |
| Computer |
LED display |
| Shifter |
Shimano M315, 8-speed |
| Rear derailleur |
Shimano Acera M3020-8, 40T max cog |

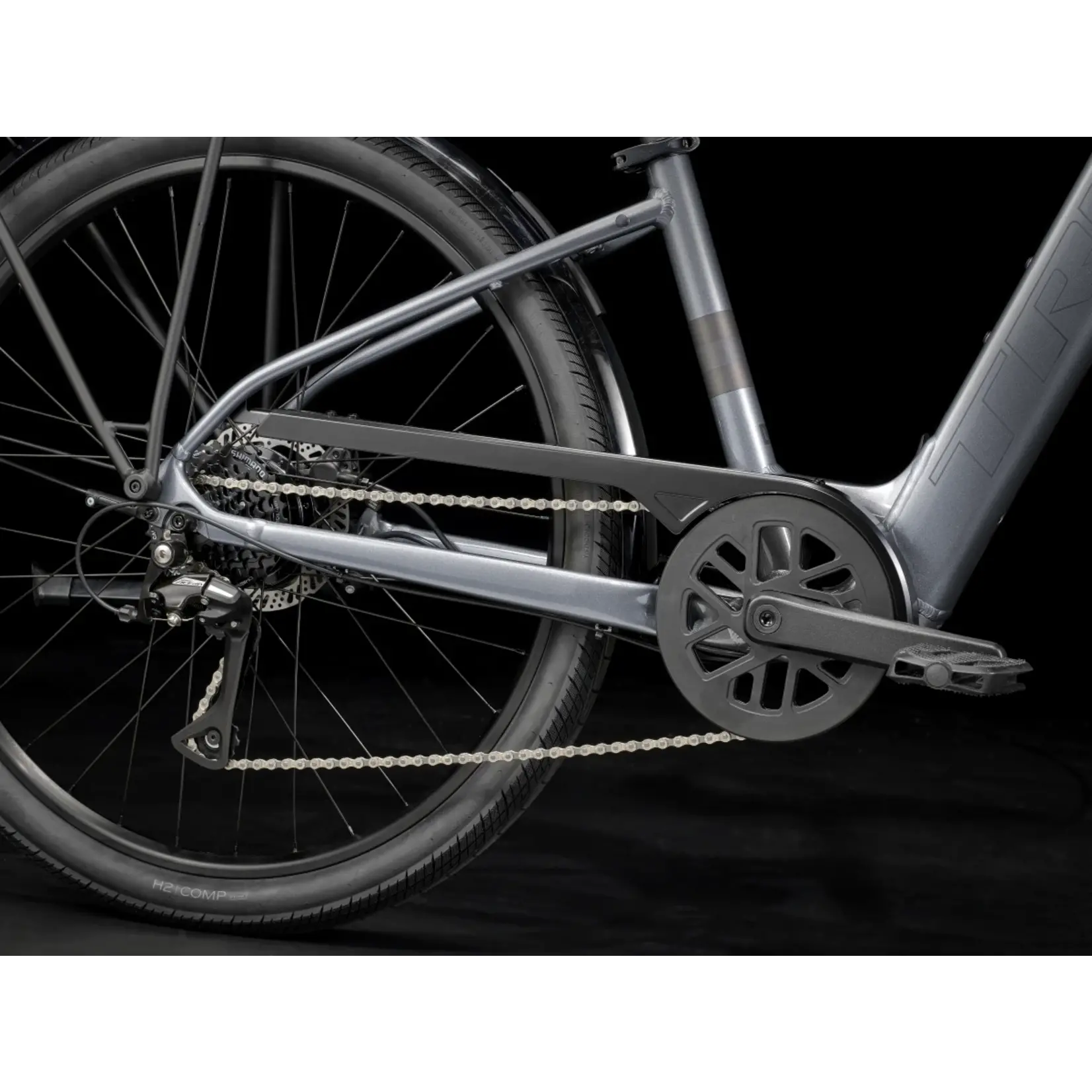

| Crank |
ProWheel Pro alloy, 42T narrow-wide steel ring, 170 mm length |
| Bottom bracket |
Torque sensor, threaded, 122.5 mm spindle |
| Cassette |
Shimano HG400, 11-40, 8-speed |
| Chain |
KMC Z8.3 |
| Pedal |
slip-proof pedals with reflectors |
| Max. chainring size |
1x: 42T |
| Saddle |
Selle Royal Nuvola |
| Seatpost |
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Handlebar |
Bar/stem w/ light mount |

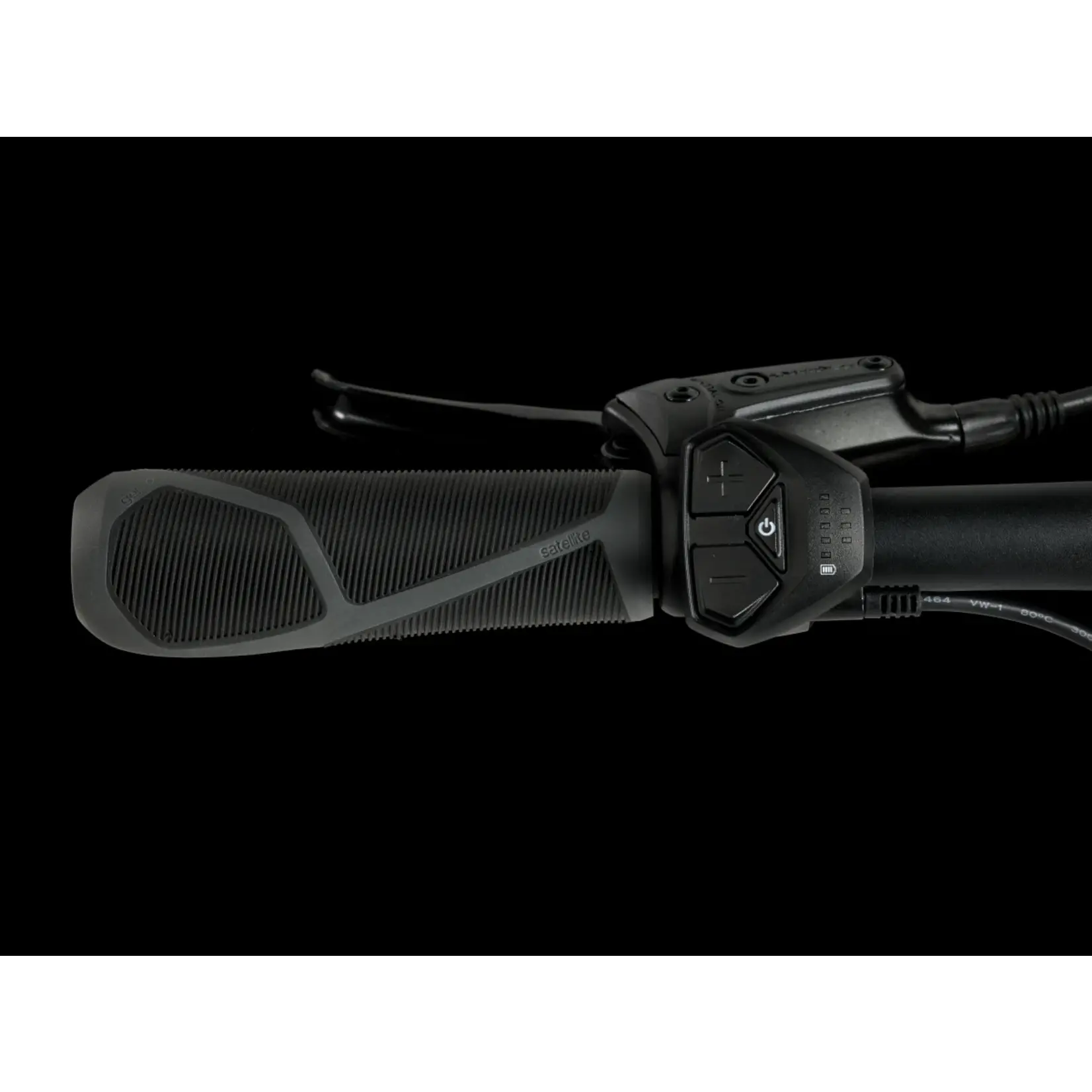

| Grips |
Bontrager Satellite Elite, alloy lock-on |
| Stem |
Integrated stem, 35 mm clamp |

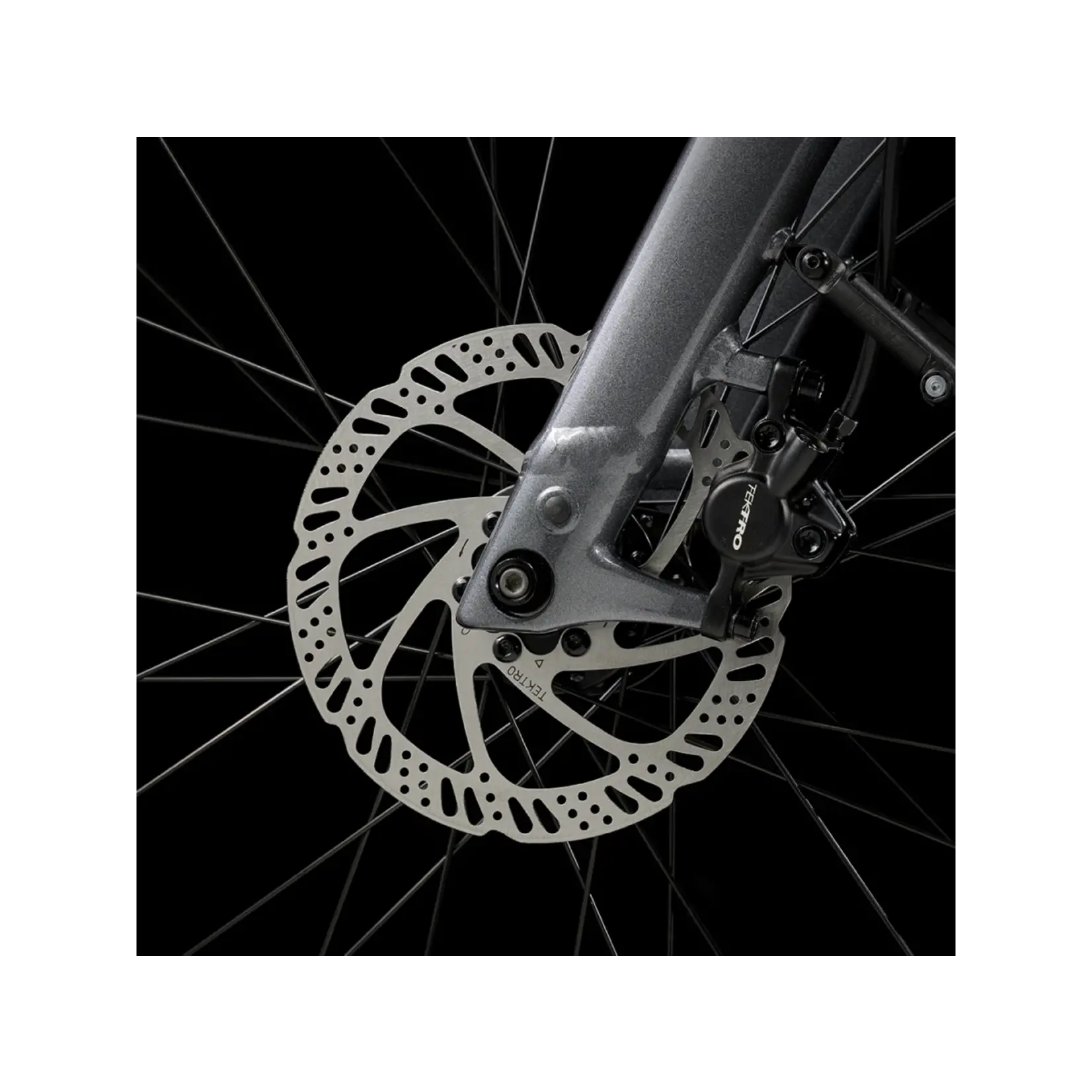

| Brake |
Tektro HD-M275 hydraulic disc |
| Brake rotor |
Tektro wave, 6-bolt, 160 mm |
| Brake Set |
Tektro HD-M275 hydraulic disc |
| Rotor size |
Max brake rotor sizes: 160 mm front and rear |

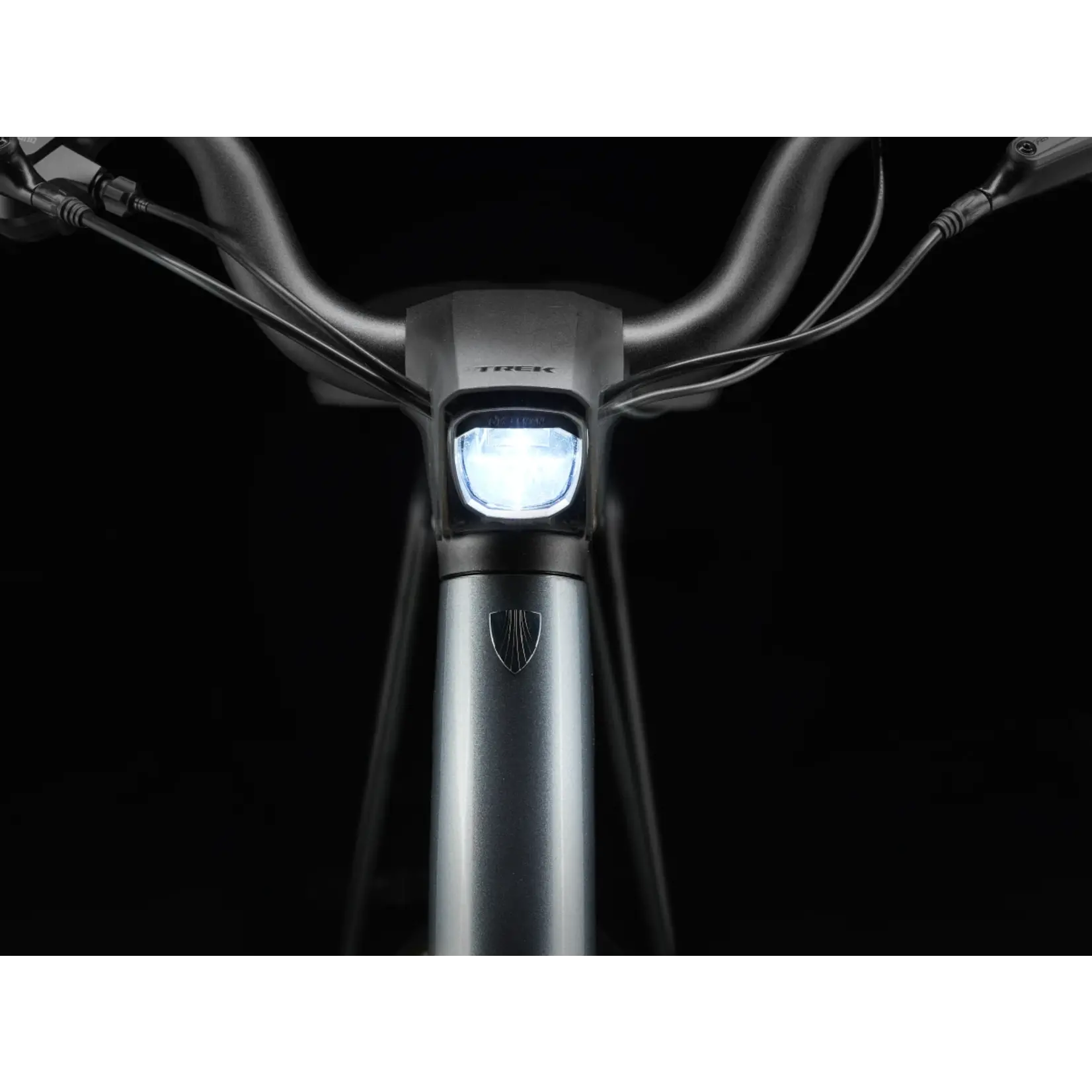

| *Light |
Size: S, M, LSpanninga SOLO for e-bike |
| |
Size: S, M, LHerrmans H-Black MR5-E, 140 Lumen, 40 Lux, LED, headlight |
| Kickstand |
Pletscher Comp 18 |

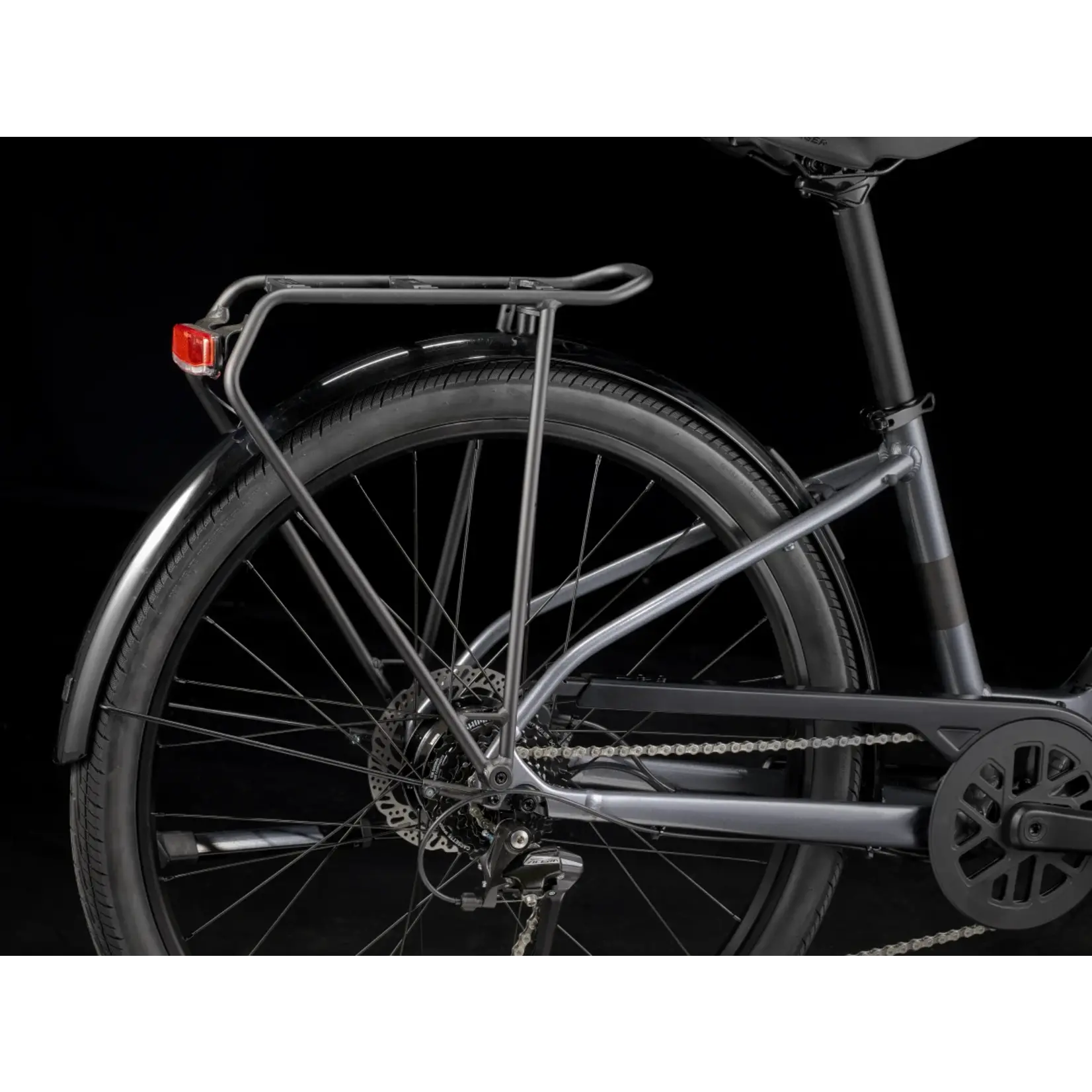

| Cargo rack |
MIK-compatible alloy rear rack, maximum load 25 kg |
| *Mudguard |
Size: S, M, LSKS wide |
| |
Size: S, M, LSKS plastic, front |
| Weight |
M - 18.90 kg / 41.67 lbs |
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
