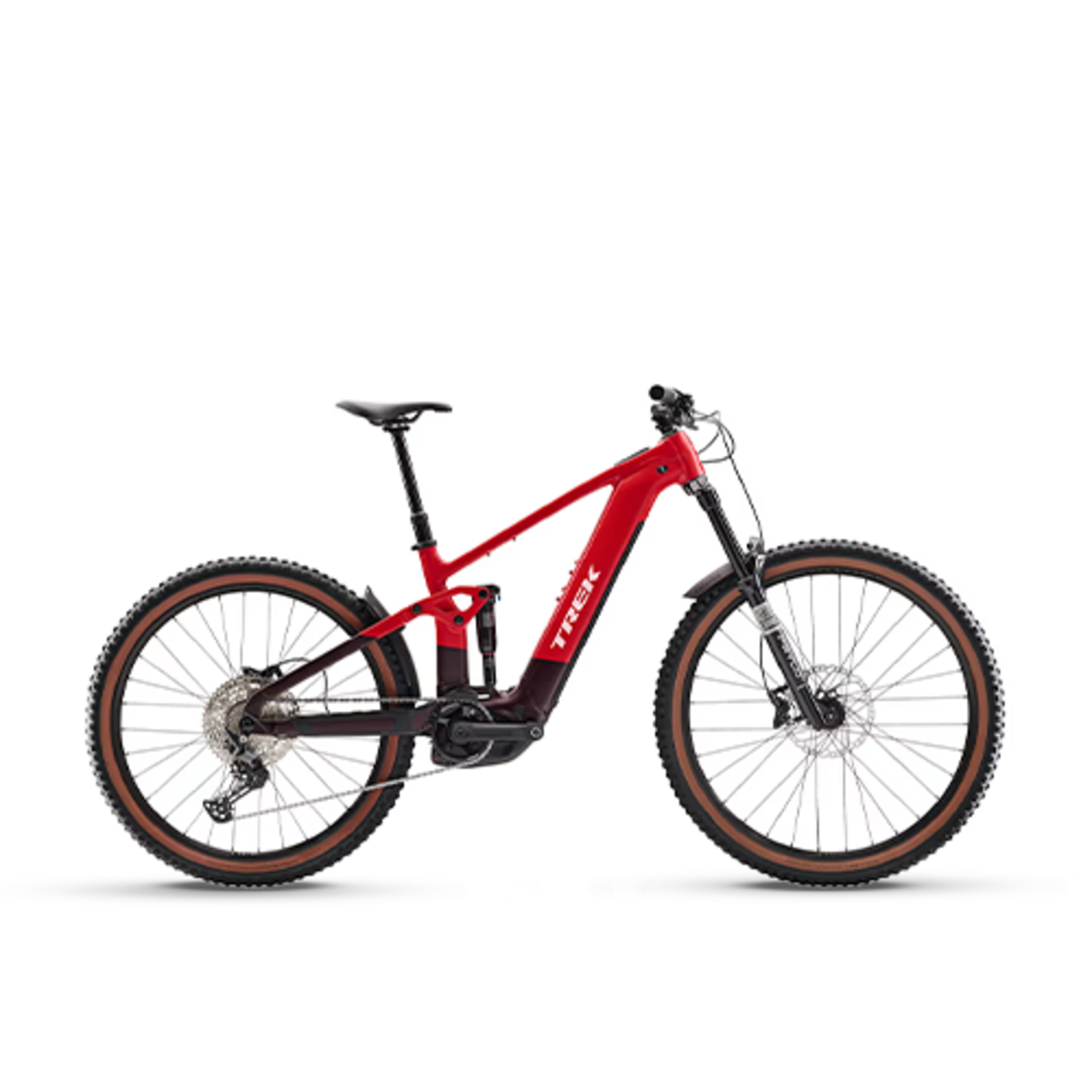

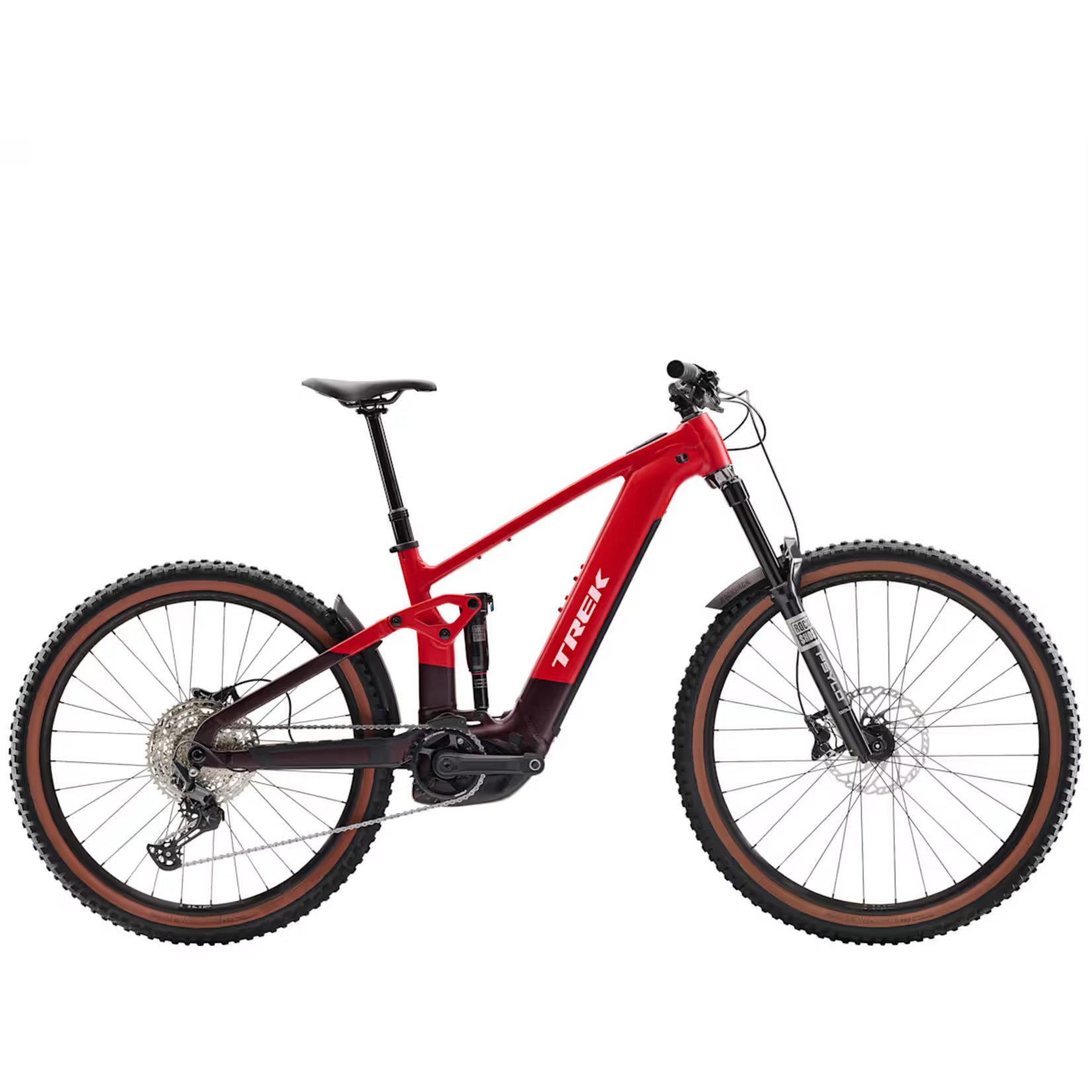

The Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminium frame partners with a RockShox Deluxe Select+ RT shock and Psylo Gold RC fork (160 mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post and tubeless-ready Bontrager Line TLR 30 wheels for charging into anything.
| *Frame |
Size: S, XL, L, M
Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel
|
| *Fork |
Size: S, XL, L, M
RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel
|
| *Shock |
Size: S, XL, L, M
RockShox Deluxe Select+ RT, 205 mm x 65mm
|
| *Hub front |
Size: S, XL, L, M
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
|
| *Hub rear |
Size: S, XL, L, M
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
|
| *Skewer rear |
Size: S, XL, L, M Bontrager Switch thru-axle, removable lever |
| *Tyre |
Size: S, XL, L, M Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40" |
| |
Size: XL, L, M Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" |
| *Tyre part |
Size: S, XL, L, M
Bontrager TLR sealant, 180 ml/6 oz
|
| *Rim strip |
Size: S, XL, L, M Bontrager TLR |
| Max tyre size |
Frame: 27.5x2.60", Fork: See manufacturer |
| *Battery |
Size: S, XL, L, M
Bosch PowerTube 800 Wh, smart system
|
| *Charger |
Size: S, XL, L, M
Bosch standard 2A, 230V, smart system
|
| *Controller |
Size: S, XL, L, M
Bosch System Controller BRC3100, smart system
|
| *Motor |
Size: S, XL, L, M
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
|
| *Shifter |
Size: S, XL, L, M
Shimano Deore M6100, 12-speed
|
| *Rear derailleur |
Size: S, XL, L, M
Shimano Deore M6100, long cage
|
| *Crank arm |
Size: S, XL, L, M
E*thirteen E*spec Plus, 160 mm length
|
| *Cassette |
Size: S, XL, L, M
Shimano Deore M6100, 10-51, 12-speed
|
| *Chain |
Size: S, XL, L, M
Shimano Deore M6100, 12-speed
|
| *Pedal |
Size: S, XL, L, M VP-536 nylon platform |
| Max. chainring size |
1x: 36T |
| *Saddle |
Size: S, XL, L, M
Bontrager Verse P3, steel rails
|
| *Seatpost |
Size: S
TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mm
|
| |
Size: XL, L, M
TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
|
| *Handlebar |
Size: S, XL, L, M
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
|
| *Grips |
Size: S, XL, L, M
Bontrager XR Trail Comp, nylon lock-on
|
| *Stem |
Size: S, XL, L, M
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
|
| *Brake |
Size: S, XL, L, M
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
|
| *Brake rotor |
Size: S, XL, L, M
Shimano RT66, 6-bolt, 203 mm
|
| Rotor size |
Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer |
| Weight |
M - 25.28 kg / 55.74 lb (with TLR sealant, no tubes) |
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
