CloseFor the short trackers and endurance rippers, the World Cuppers and the first timers, the Procaliber is here to deliver the speed and power you need to stay at the front of the pack. This game-changing cross-country race machine pairs classic hardtail efficiency with capable geometry for a ride that’s champing at the bit to attack straight off the starting line, sprint up climbs and roast the competition.

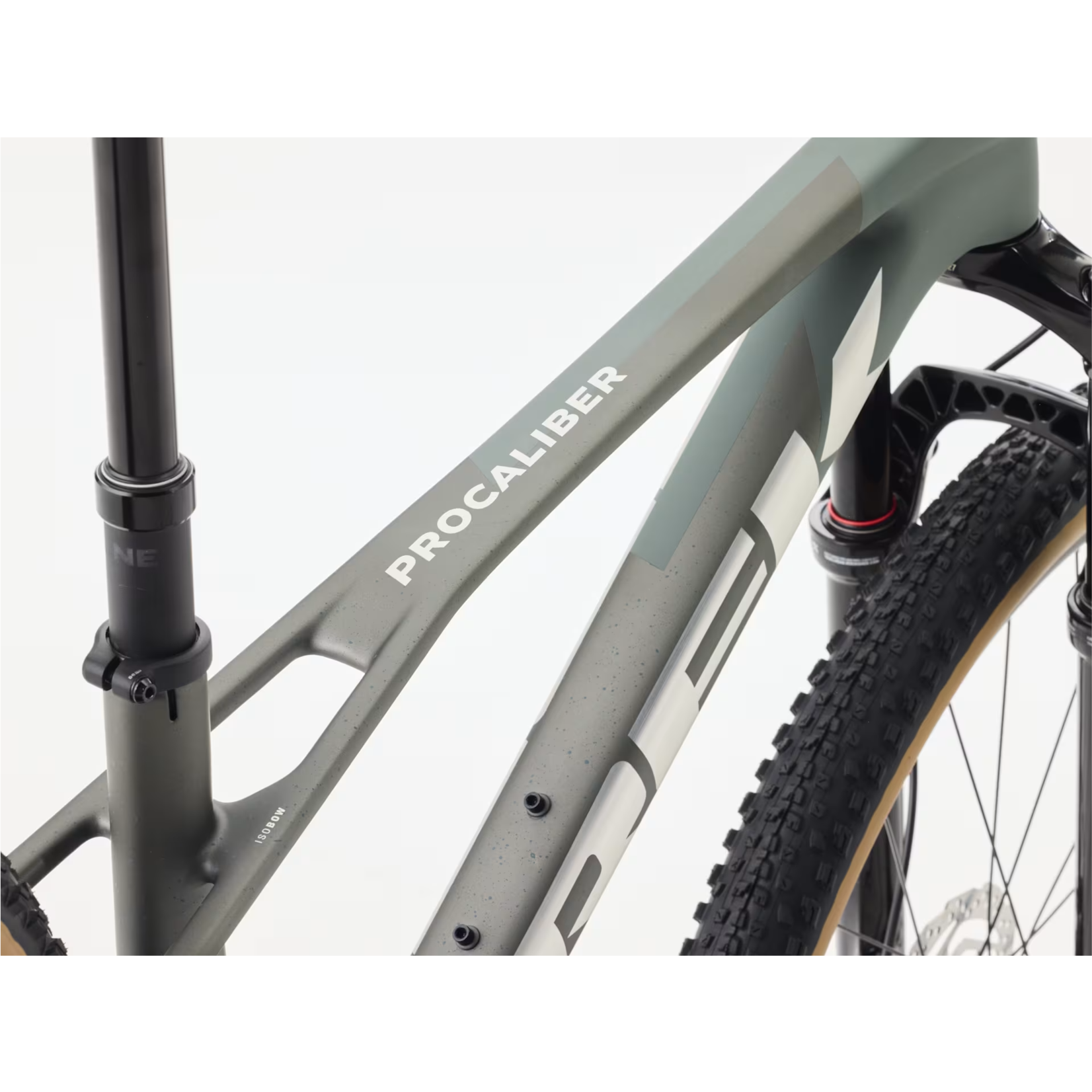

Innovative IsoBow frame technology extends Procaliber's seat stays beyond the seat tube, allowing for increased vertical complicane that smooths trail chatter while reducing frame weight.
With a slacker head tube angle than most XC bikes and longer 120 mm travel, the Procaliber Carbon's calm demeanour encourges you to put your foot down.
Rather than mounting to the seat stay, the brake secures to an extension of the rear axle, allowing the seat stay to flex and damp vibrations from the trail without impacting braking consistency and modulation.
Trek's mountain-specific carbon fibre is tougher carbon, with unique materials and lay-up procedures, Trek's advanced engineering, and a higher standard of testing.

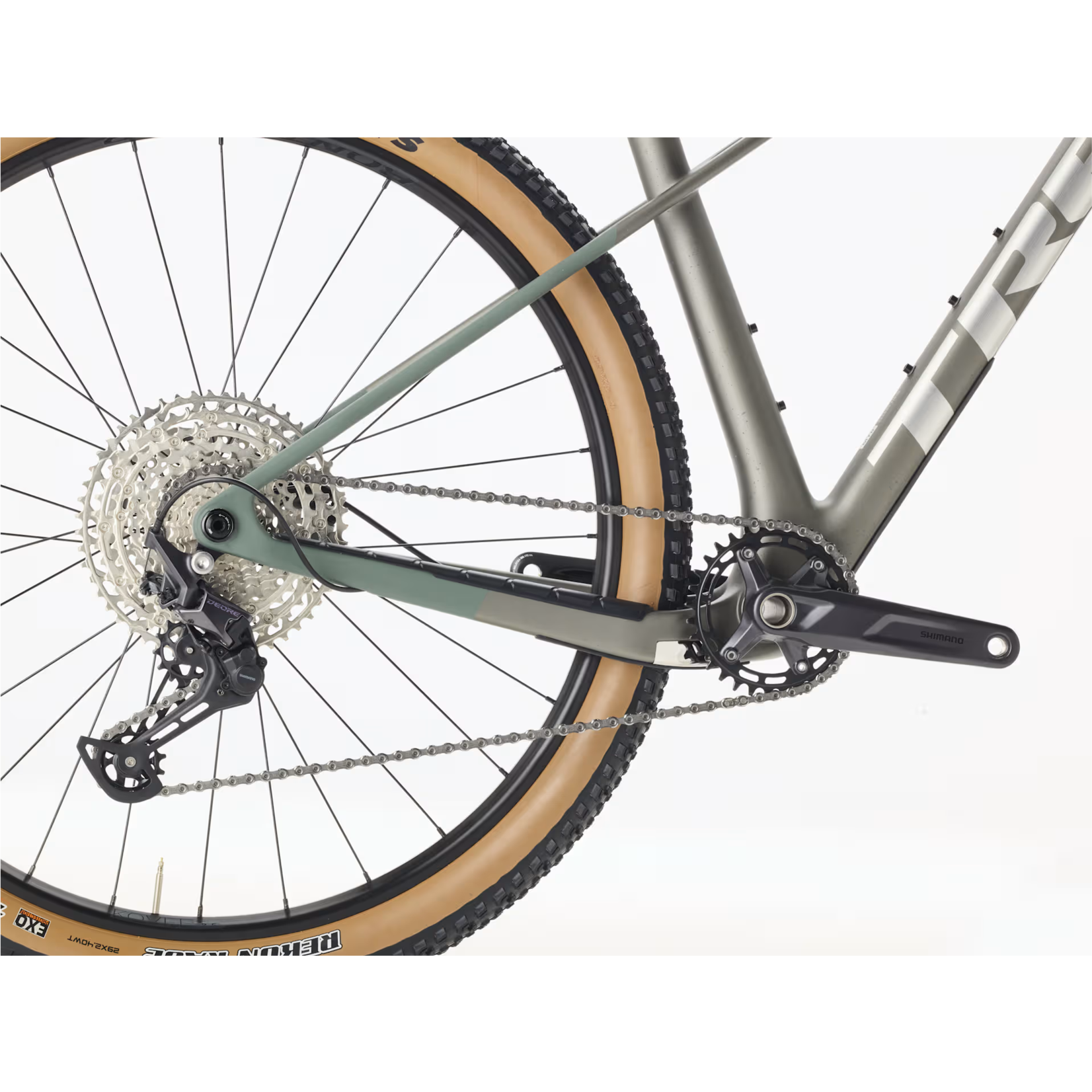

Shimano Deore brings even more adventure with a wider range of gear choices for the steep stuff, the fast stuff and the fun. With smooth riding, improved chain stability and sharp shifting, Deore heightens your mountain biking confidence and control so you can focus on the trail and enjoy the ride.
This bike doesn’t come with pedals because you'll have a better ride if you choose your own. See the pedal guide to find the best pedals for your riding style. Want pedals built for the race? We recommend clipless MTB pedals for control and efficiency.
Frameset | |
---|---|
Frame | OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post-mount brake, Boost148 |
Fork | RockShox Judy GOLD, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel |
Wheels | |
---|---|
Hub front | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
Hub rear | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
Rim | Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
*Tyre | Size: S, XL, L, M, ML Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"Size: S, XL, L, M, ML Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20" |
Max tyre size | Frame: 29x2.40", Fork: See manufacturer |
Drivetrain | |
---|---|
Shifter | Shimano Deore M6100, 12-speed |
Rear derailleur | Shimano Deore M6100, long cage |
*Crank | Size: S, M, ML Shimano MT512, 32T, 55 mm chain line, 170 mmSize: XL, L Shimano MT512, 32T, 55 mm chain line, 175 mm |
Bottom bracket | Shimano MT500, 92 mm, PressFit |
Cassette | Shimano Deore M6100, 10-51, 12-speed |
Chain | Shimano Deore M6100, 12-speed |
Max. chainring size | 1x: 38T |
Components | |
---|---|
Saddle | Verse Short, chromoly rails, 145 mm width |
*Seatpost | Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm lengthSize: L, M, ML Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm lengthSize: XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length |
*Handlebar | Size: S Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm widthSize: XL, L, M, ML Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
*Grips | Size: S, XL, L, M, ML Bontrager XR Trail Comp, nylon lock-onSize: S, XL, L, M, ML Trek Line Comp, nylon lock-on |
*Stem | Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm lengthSize: M, ML Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm lengthSize: L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm lengthSize: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
Head set | FSA IS-2, 1-1/8" top, 1.5" bottom |
Brake | Shimano MT200 hydraulic disc |
*Brake rotor | Size: S, XL, L, M, ML Shimano RT10, CenterLock, 160 mmSize: XL, L Shimano RT10, CenterLock, 180 mm |
Rotor size | Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer |
Weight | |
---|---|
Weight | M – 12.13 kg/26.75 lb (with TLR sealant, no tubes) |
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
