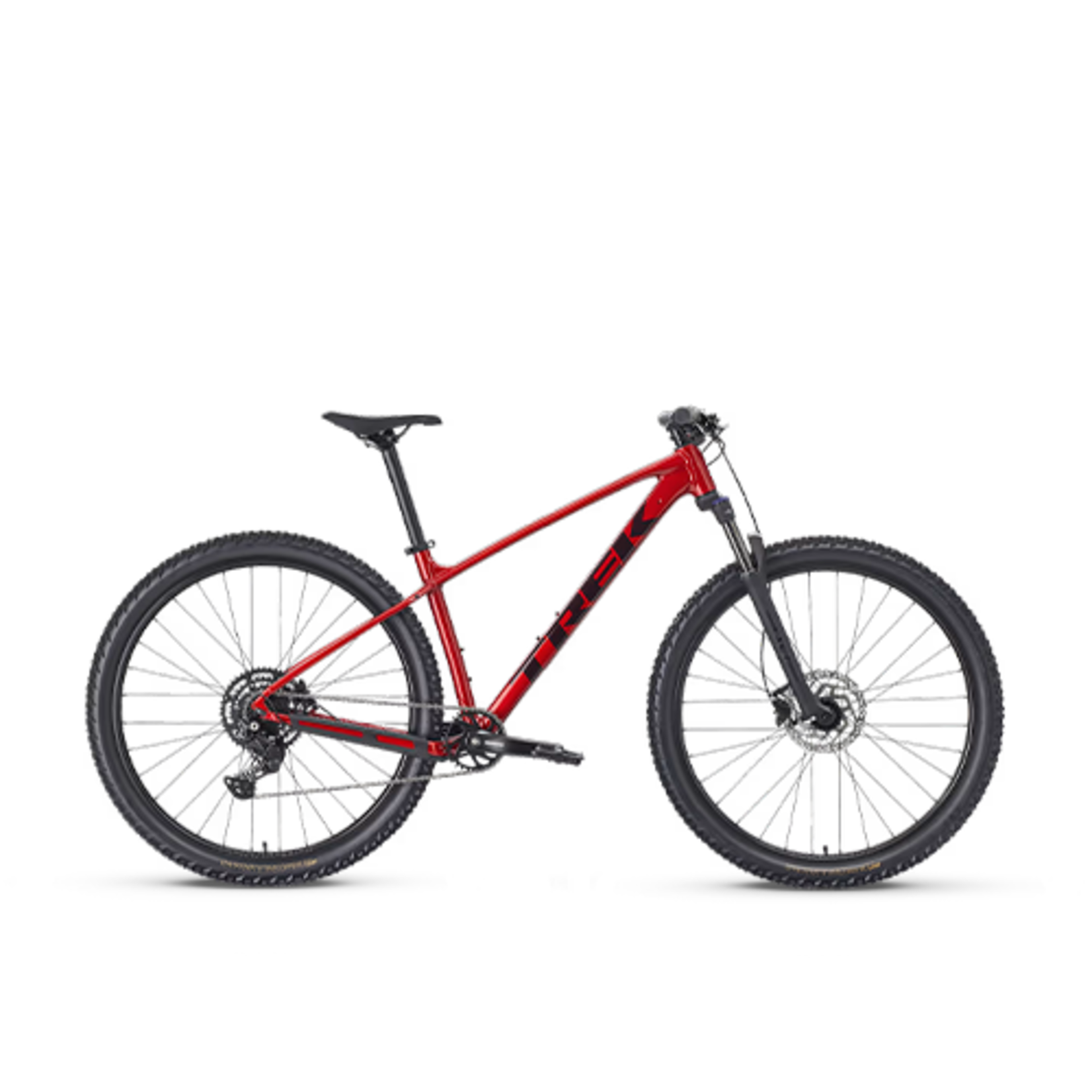

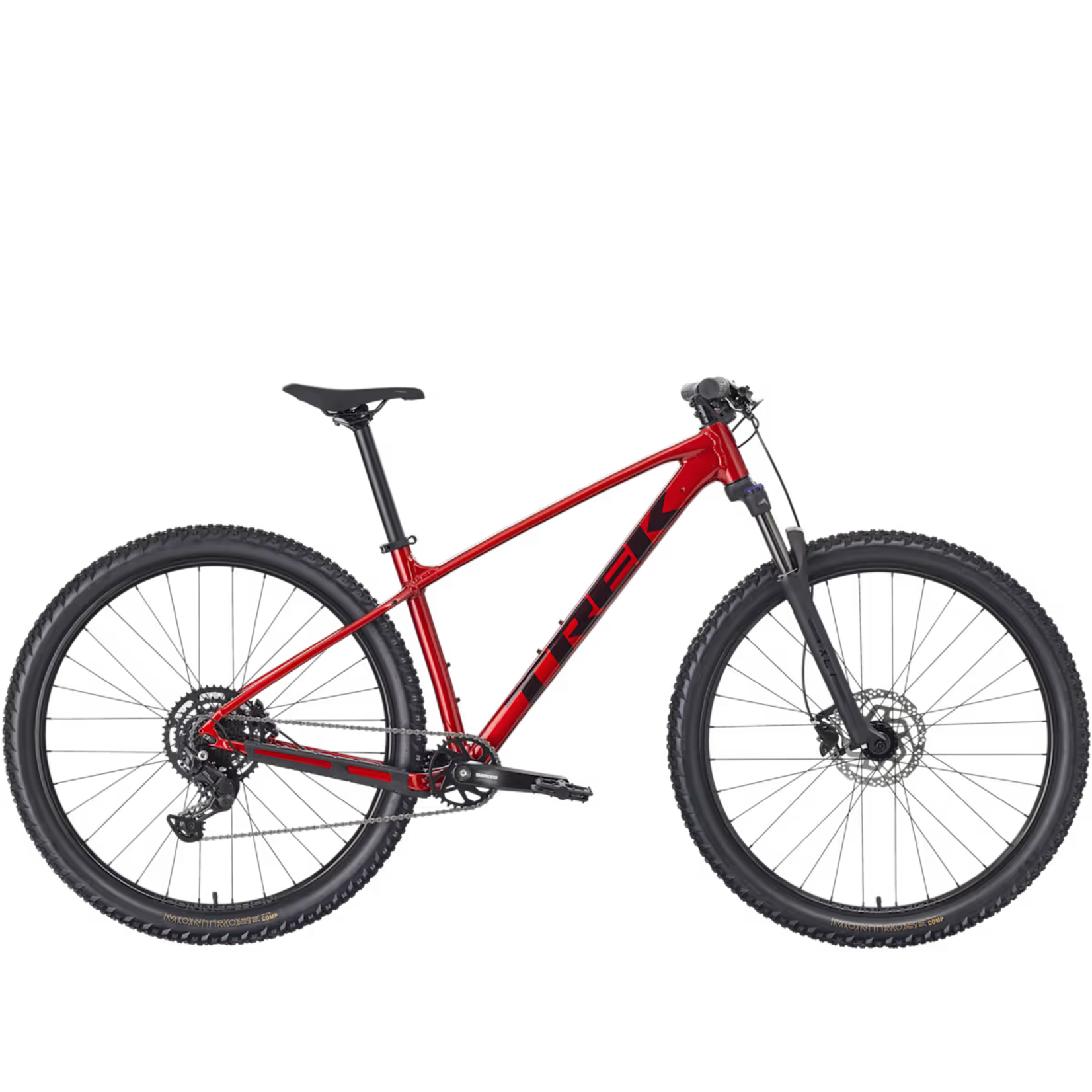

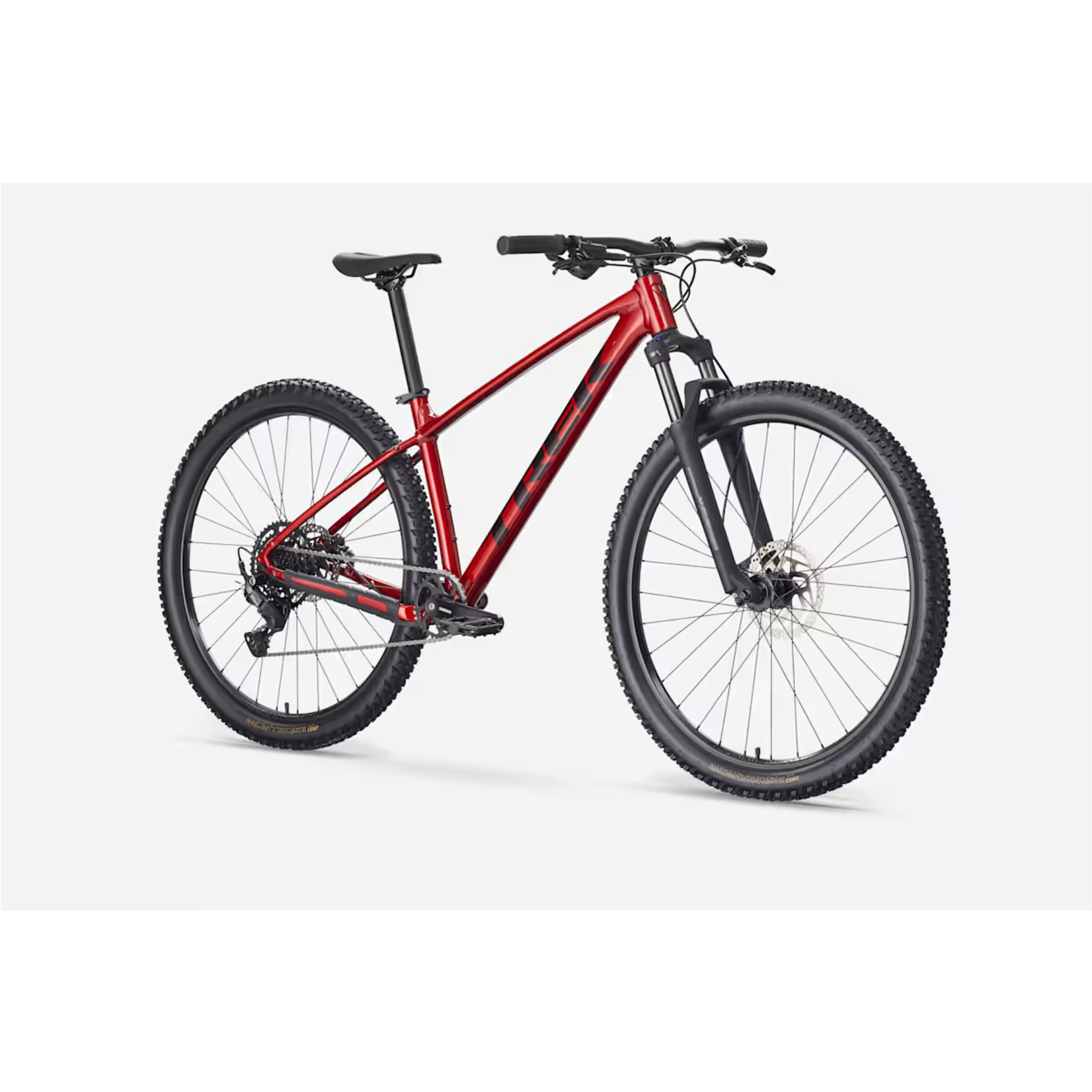

TREK MARLIN 5 GEN 3 FURY RED

SKU: 5337018

~~€699,00~~ €629,10 Incl. tax

In stock (1)

specifications

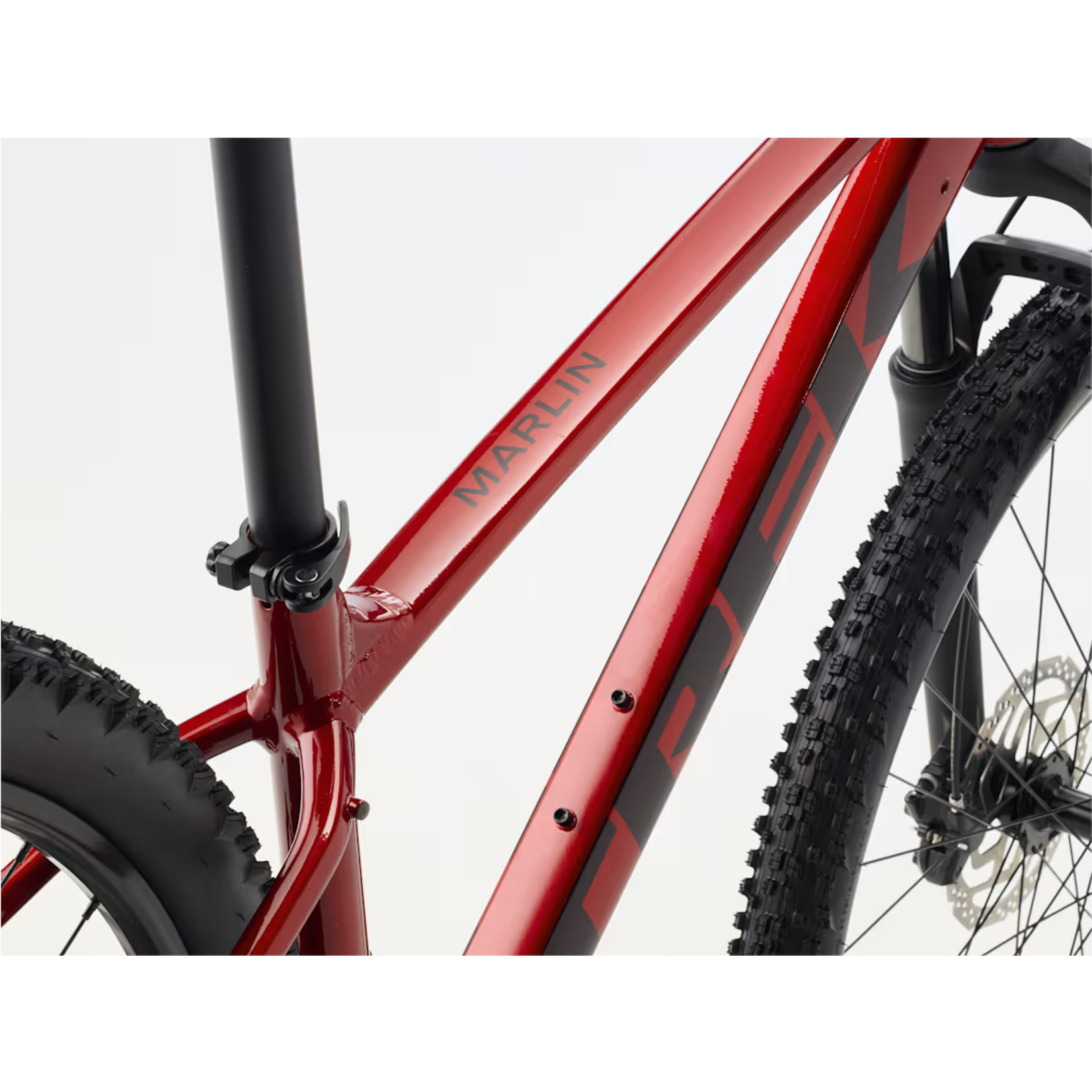

*Frame	Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
	Size: ML , M , L , S , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
*Fork	Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
	Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
	Size: ML , M , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel

*Hub front	Size: ML , M , XS , L , S , XL , XXL Formula DC-20, alloy, 6-bolt, 5x100 mm QR
*Skewer front	Size: ML , M , XS , L , S , XL , XXL Trek Thru-Skew
*Hub rear	Size: ML , M , XS , L , S , XL , XXL Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
*Skewer rear	Size: ML , M , XS , L , S , XL , XXL 173x5 mm QR
*Rim	Size: ML , M , XS , L , S , XL , XXL Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
*Spokes	Size: ML , M , XS , L , S , XL , XXL 14 g stainless steel, black
*Tyre	Size: XS , S Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40"
	Size: XS , S Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40"
	Size: ML , M , L , XL , XXL Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40"
	Size: ML , M , L , XL , XXL Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"

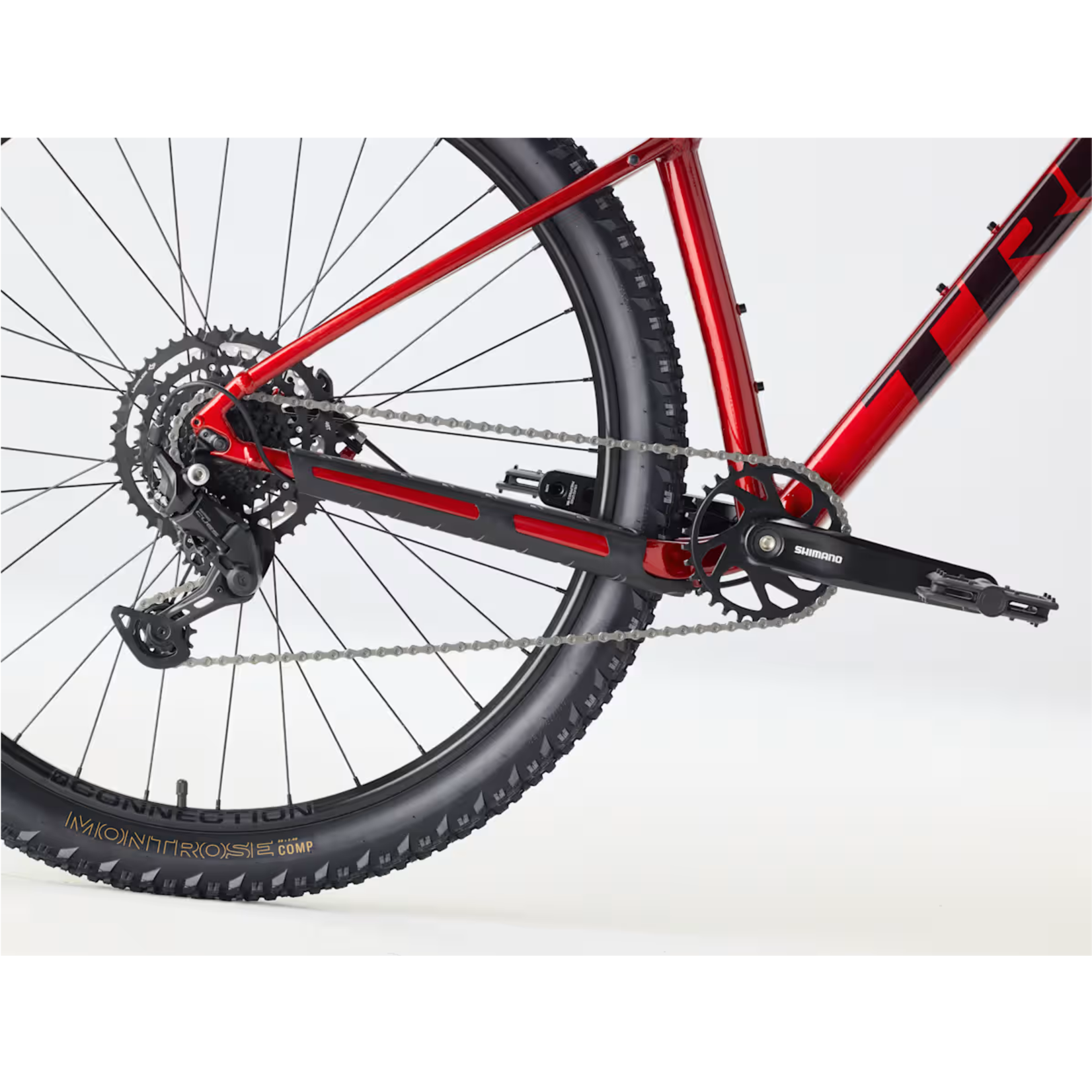

*Shifter	Size: ML , M , XS , L , S , XL , XXL Shimano U4000, 9-speed
*Rear derailleur	Size: ML , M , XS , L , S , XL , XXL Shimano CUES U4000
*Crank	Size: ML , M , XS , S Shimano CUES U4001, 32T, 52mm chain line, 170 mm length
	Size: L , XL , XXL Shimano CUES U4001, 32T, 52mm chain line, 175mm length
*Bottom bracket	Size: ML , M , XS , L , S , XL , XXL Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
*Cassette	Size: ML , M , XS , L , S , XL , XXL Shimano LINKGLIDE LG300, 11-46, 9-speed
*Chain	Size: ML , M , XS , L , S , XL , XXL Shimano LG500
*Pedal	Size: ML , M , XS , L , S , XL , XXL VP-536 nylon platform

*Saddle	Size: ML , M , XS , L , S , XL , XXL Bontrager Verse Short, stainless steel rails
*Seatpost	Size: M , XS , S Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
	Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

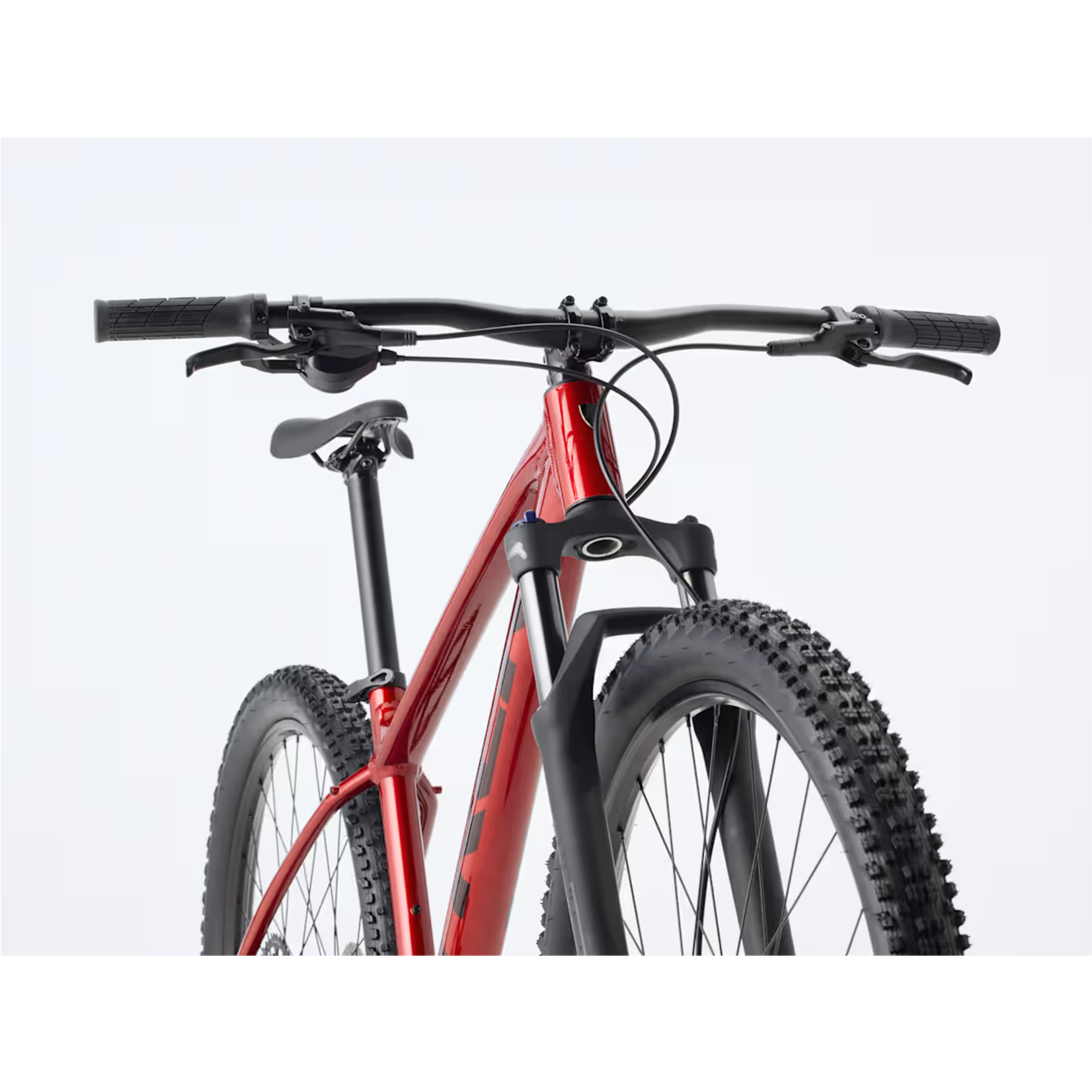

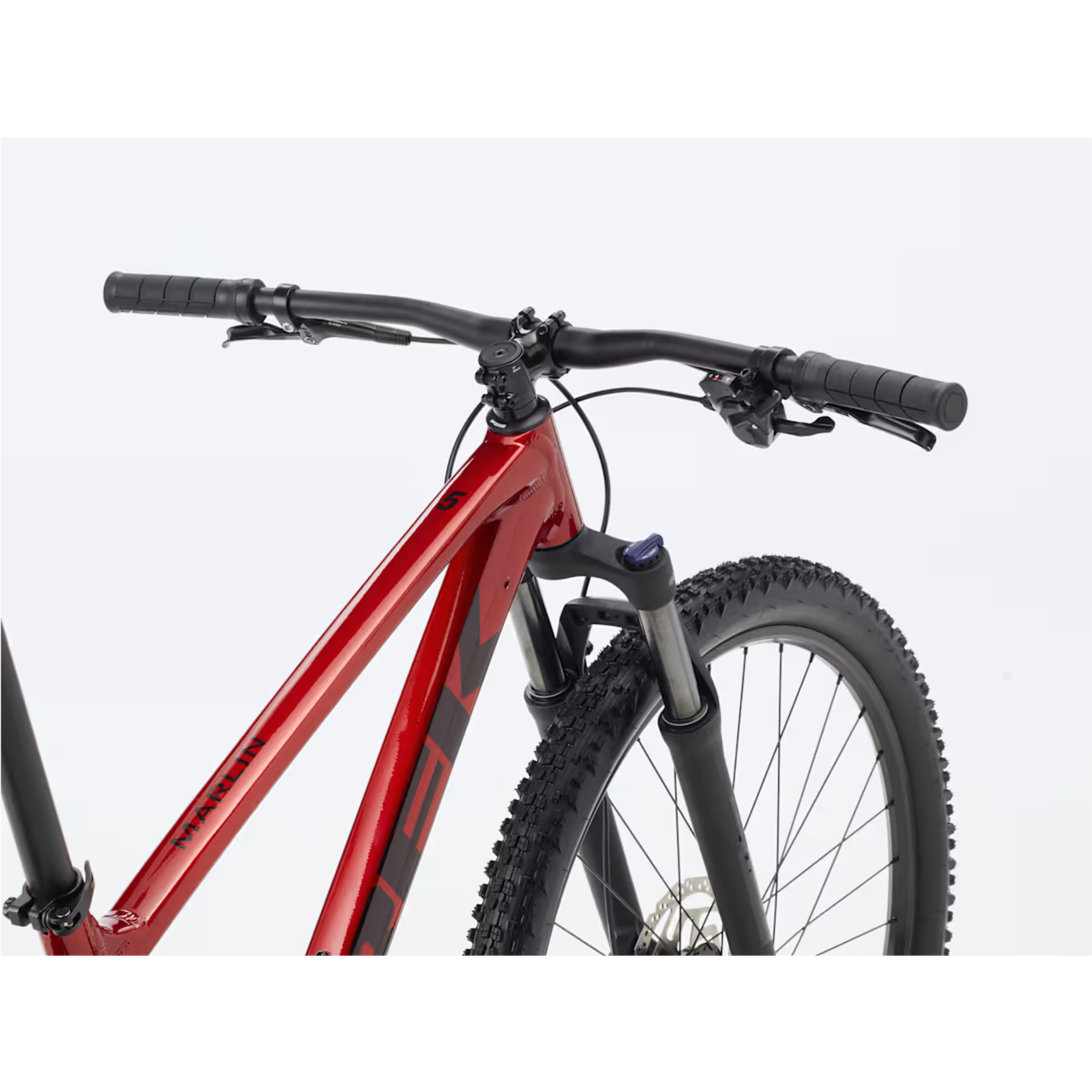

*Handlebar	Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
	Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
	Size: ML , M , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
*Grips	Size: ML , M , XS , L , S , XL , XXL Trek Line Comp, nylon lock-on
*Stem	Size: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
	Size: ML , M , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
	Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
	Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
*Head set	Size: ML , M , XS , L , S , XL , XXL Semi-integrated, 1-1/8"
*Brake	Size: ML , M , L , XL , XXL Shimano MT200 hydraulic disc
*Brake rotor	Size: ML , M , XS , L , S , XL , XXL Shimano RT26, 6-bolt, 160 mm
	Size: ML , M , L , XL , XXL Shimano RT26, 6-bolt, 180 mm
*Brake Set	Size: ML , M , XS , L , S , XL , XXL Shimano MT200 hydraulic disc

Weight	M - 15.10 kg / 33.29 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
