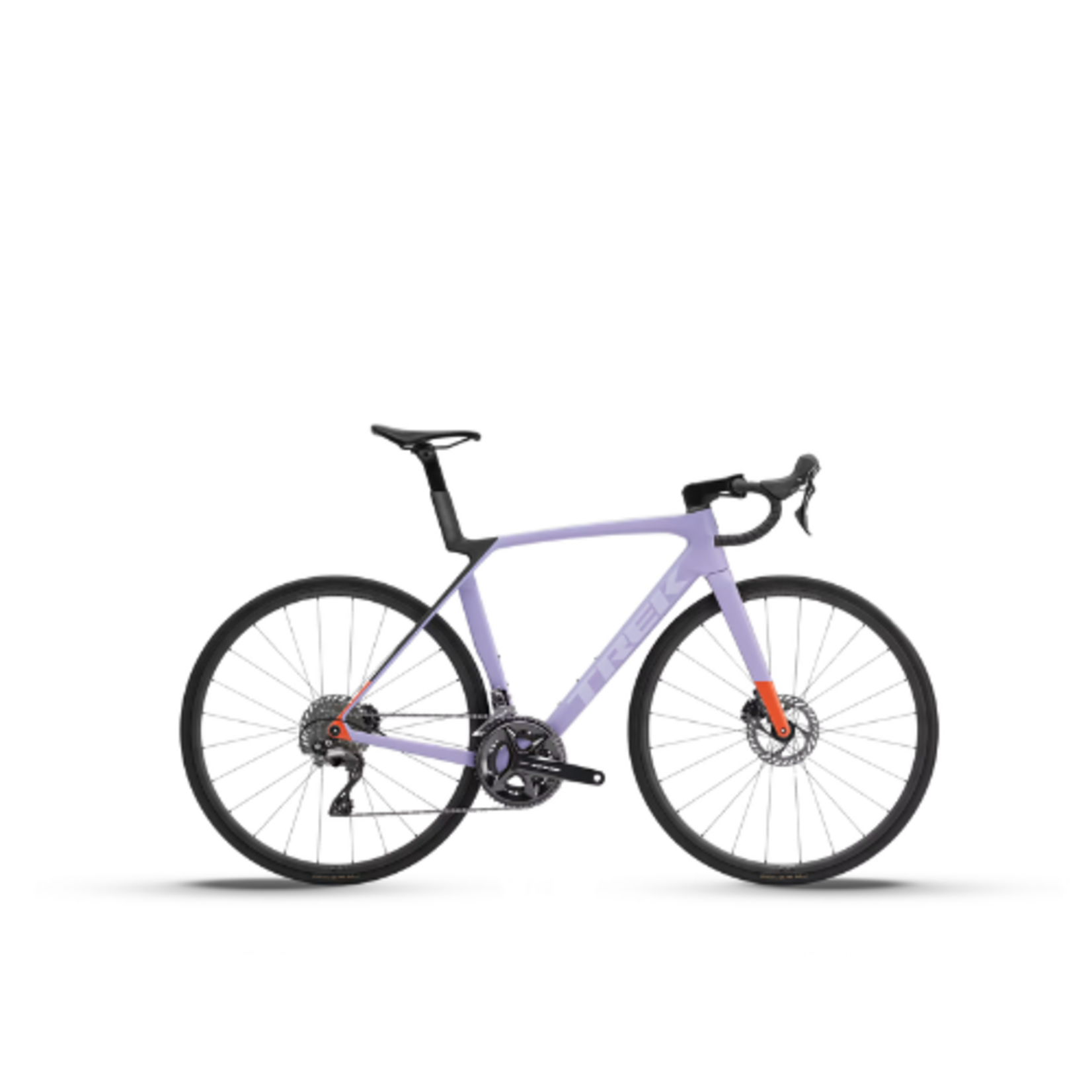

TREK MADONE SL 5 PURPLE

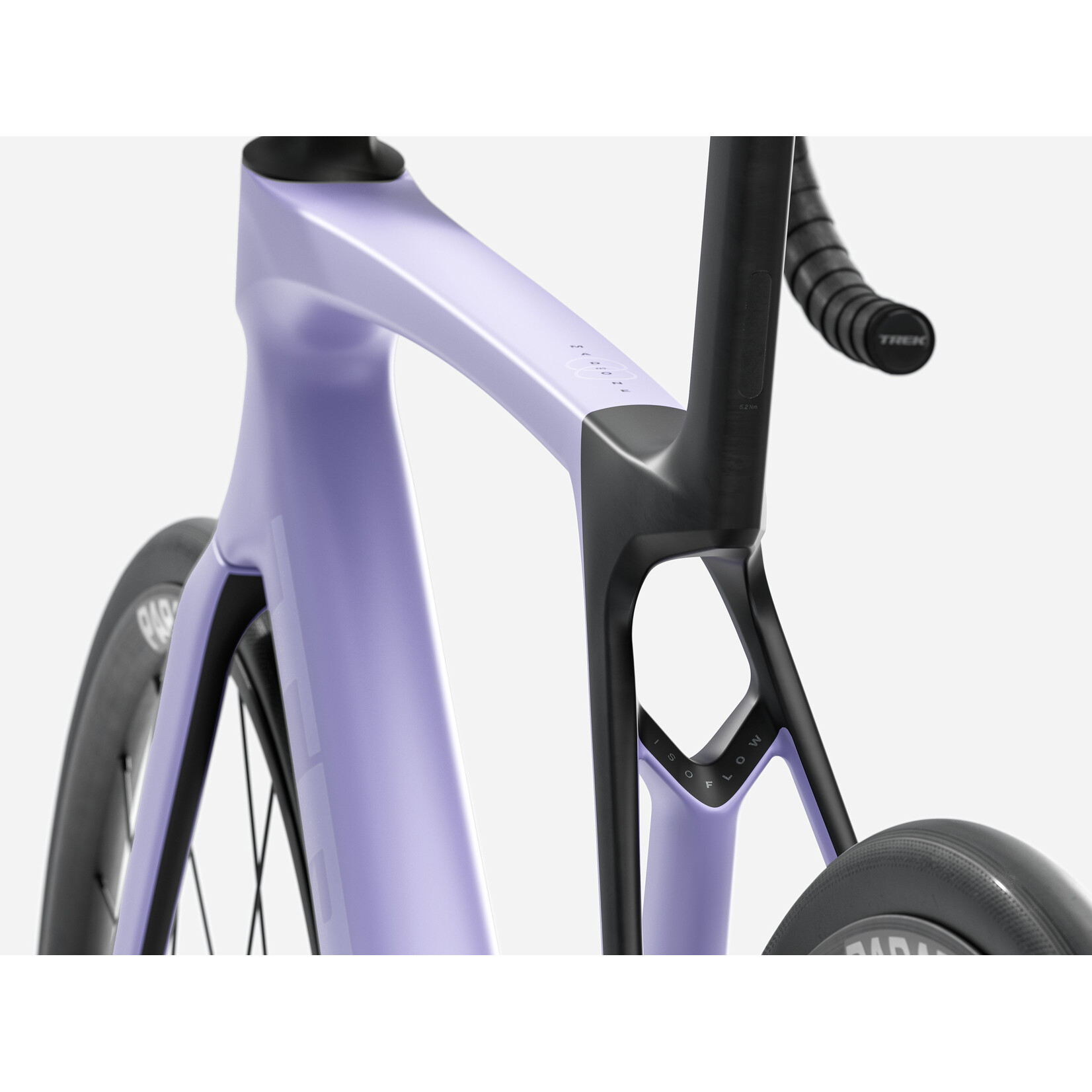

Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru-axle

Weight: ML - 8.64 kg / 19.05 lbs (with tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Shifter: Shimano 105 R7120, 12-speed
Front derailleur: Shimano 105 R7100, braze-on, down swing
Rear derailleur: Shimano 105 R7100, 36T max cog
*Crank: Size: XS, S

Shimano 105 R7100, 50/34, 165 mm length

Size: M, ML

Shimano 105 R7100, 50/34, 170 mm length

Size: L, XL

Shimano 105 R7100, 50/34, 172.5 mm length
Bottom bracket: Praxis, T47 threaded, internal bearing
Cassette: Shimano 105 7101, 11-34, 12-speed
Chain: Shimano SLX M7100, 12-speed
Max. chainring size: 1x: 54T, 2x: 56/43

Hub front: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle
Hub rear: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Rim: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Spokes: 14 g stainless steel, black
Tyre: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm
Max tyre size: 32 mm (as measured, see manual for details)

Saddle: Bontrager Aeolus Elite, austenite rails, 145 mm width
Seatpost: Madone aero carbon seat post, 0 mm offset, short length

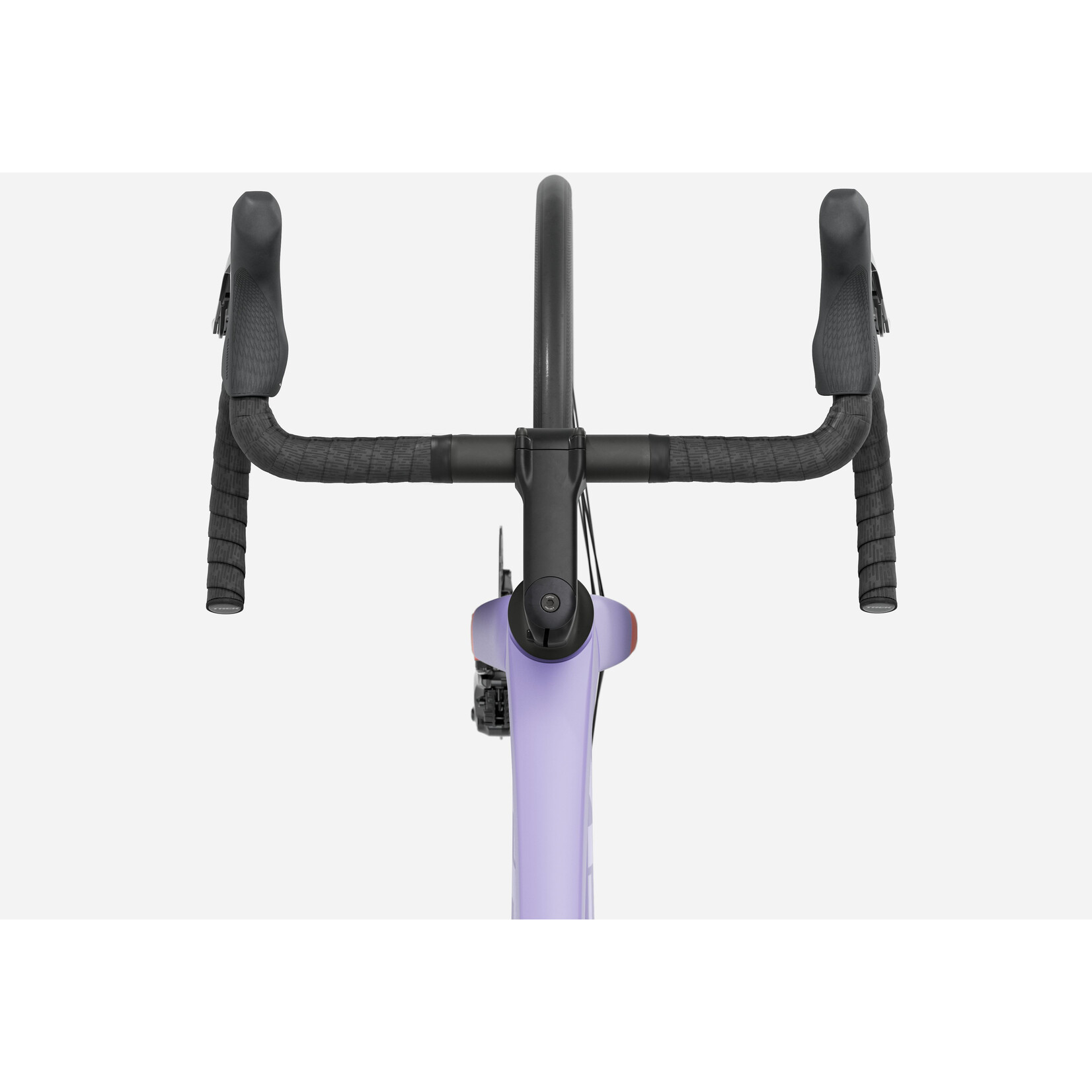

*Handlebar: Size: XS
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width

Size: S, M
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width

Size: ML, L
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width

Size: XL
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
Handlebar tape: Trek EcoTack
*Stem: Size: XS
Trek RCS Pro, -7-degree, 80 mm length

Size: S, M
Trek RCS Pro, -7-degree, 90 mm length

Size: ML, L
Trek RCS Pro, -7-degree, 100 mm length

Size: XL
Trek RCS Pro, -7-degree, 110 mm length
*Brake rotor: Size: XS, S, M, ML, L, XL

Shimano RT70, CentreLock, 160 mm

Size: XS, S, M, ML, L, XL

Shimano CL700, CentreLock, 160 mm
Rotor size: Max brake rotor sizes: 180 mm front, 160 mm rear
