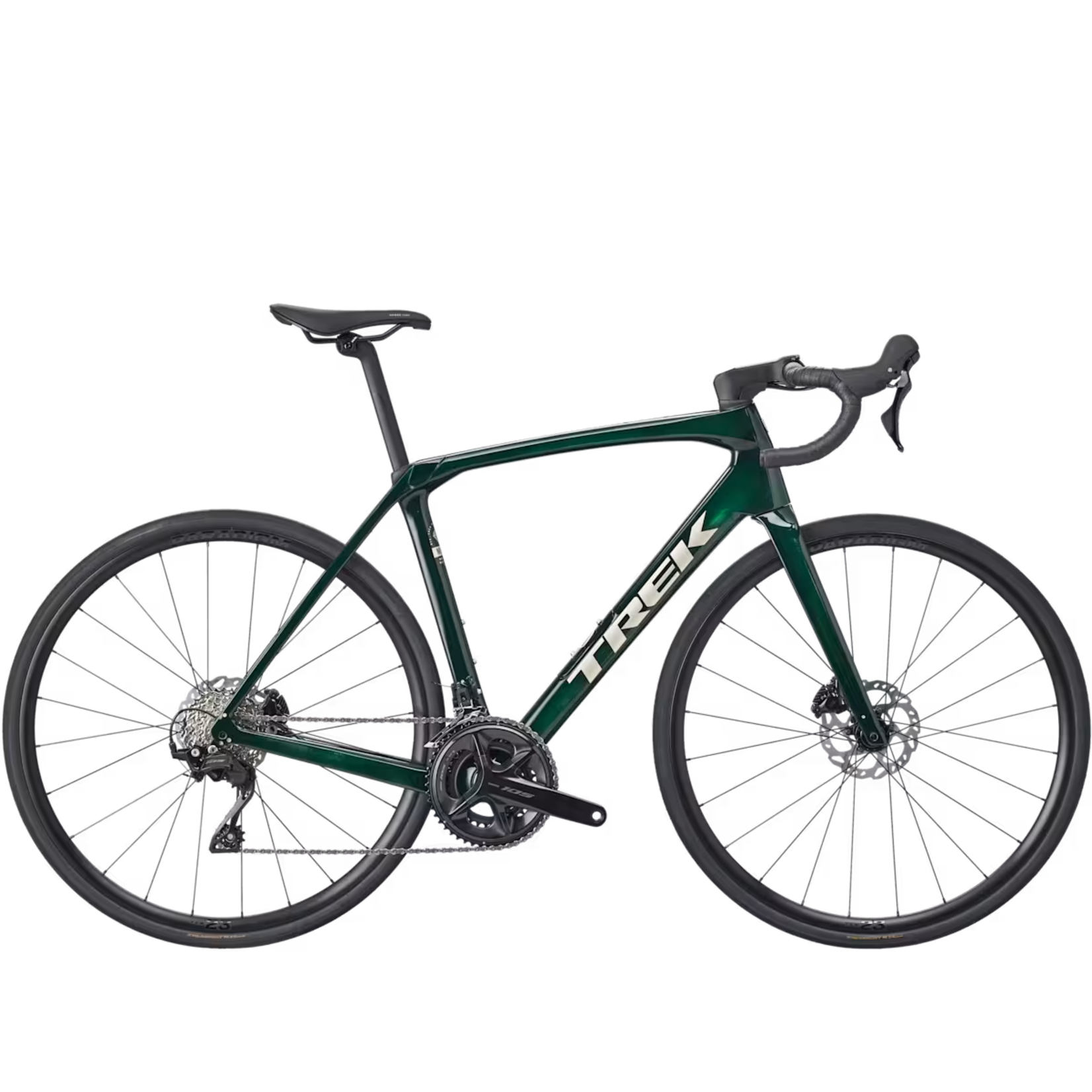

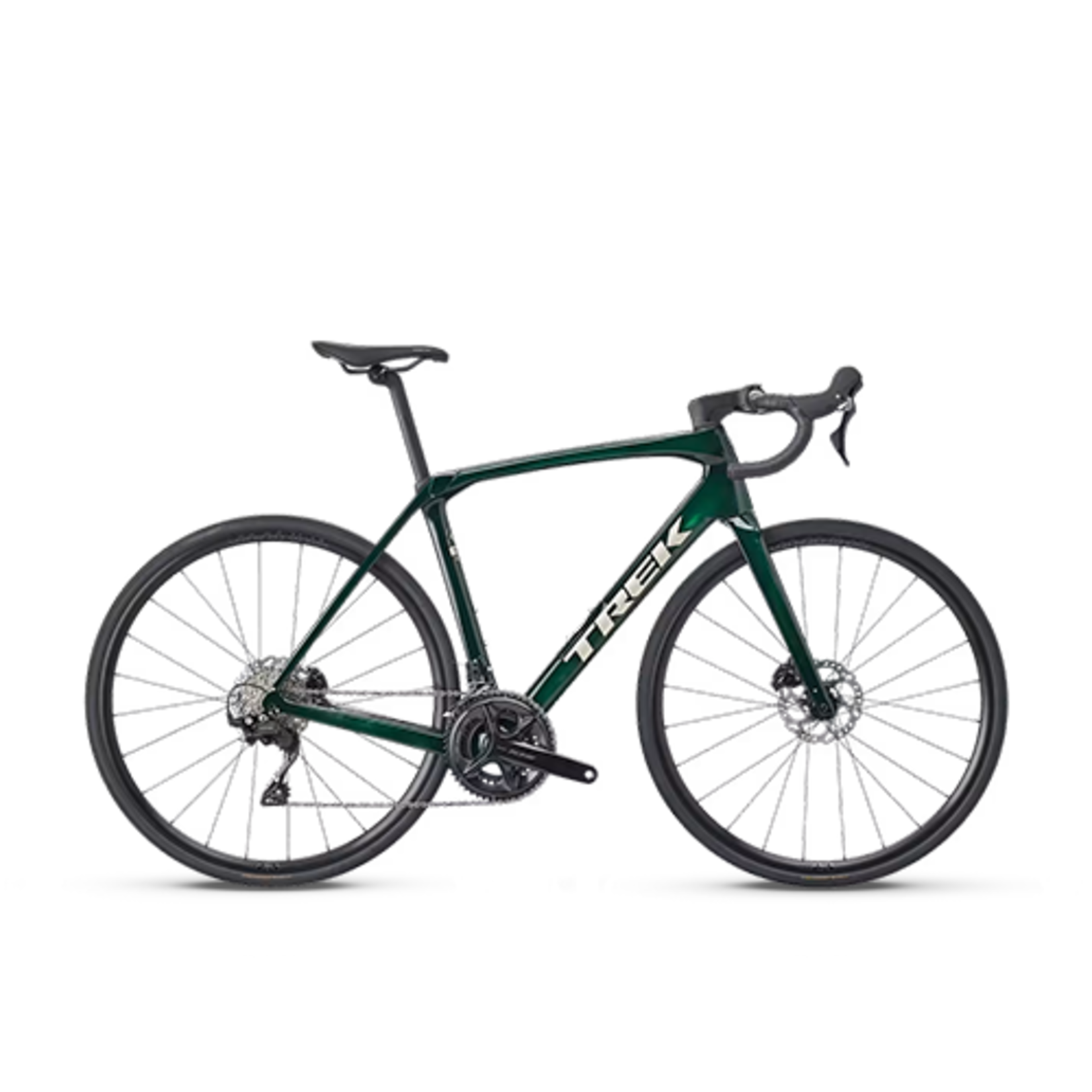

TREK DOMANE SL 5 GEN 4 IVY SMOKE

SKU: 5337724

€2.999,00

Incl. tax

Out of stock

specifications

*Frame	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle
*Fork	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle

Weight	56 - 9.09 kg / 20.05 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

*Shifter	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Shimano 105 R7120, 12-speed
*Front derailleur	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Shimano 105 R7100, braze-on, down swing
*Rear derailleur	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Shimano 105 R7100, 36T max cog
*Crank	Size: 44, 47, 50 Shimano 105 R7100, 50/34, 165 mm length
	Size: 56, 52, 54 Shimano 105 R7100, 50/34, 170 mm length
	Size: 58, 60, 62 Shimano 105 R7100, 50/34, 172.5 mm length
*Bottom bracket	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Praxis, T47 threaded, internal bearing
*Cassette	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Shimano 105 7101, 11-34, 12-speed
*Chain	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Shimano SLX M7100, 12-speed
Max. chainring size	1x: 48T, 2x: 52/36

*Hub front	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
*Skewer front	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Bontrager Switch thru-axle
*Hub rear	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
*Skewer rear	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Bontrager Switch thru-axle, removable lever
*Rim	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
*Spokes	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 14 g stainless steel, black
*Tyre part	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Bontrager TLR sealant, 180 ml/6 oz
Max tyre size	38 mm without mudguards, 35 mm with mudguards (as measured, see manual for details)

*Saddle	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Verse Short Comp, steel rails, 145 mm width
*Seatpost	Size: 44, 56, 47, 50, 52, 54 KVF aero carbon seat post, 20 mm offset, 280 mm length
	Size: 58, 60, 62 KVF aero carbon seat post, 20 mm offset, 320 mm length
*Handlebar	Size: 44, 47 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width
	Size: 50, 52 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
	Size: 56, 58, 54 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
	Size: 60, 62 Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
*Handlebar tape	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Trek EcoTack
*Stem	Size: 44 Trek RCS Pro, -7-degree, 60 mm length
	Size: 47 Trek RCS Pro, -7-degree, 70 mm length
	Size: 50 Trek RCS Pro, -7-degree, 80 mm length
	Size: 52, 54 Trek RCS Pro, -7-degree, 90 mm length
	Size: 56, 58 Trek RCS Pro, -7-degree, 100 mm length
	Size: 60, 62 Trek RCS Pro, -7-degree, 110 mm length
*Brake rotor	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Shimano CL700, CentreLock, 160 mm
	Size: 44, 56, 47, 58, 60, 50, 62, 52, 54 Shimano RT70, CentreLock, 160 mm
Rotor size	Max brake rotor sizes: 160 mm front and rear
