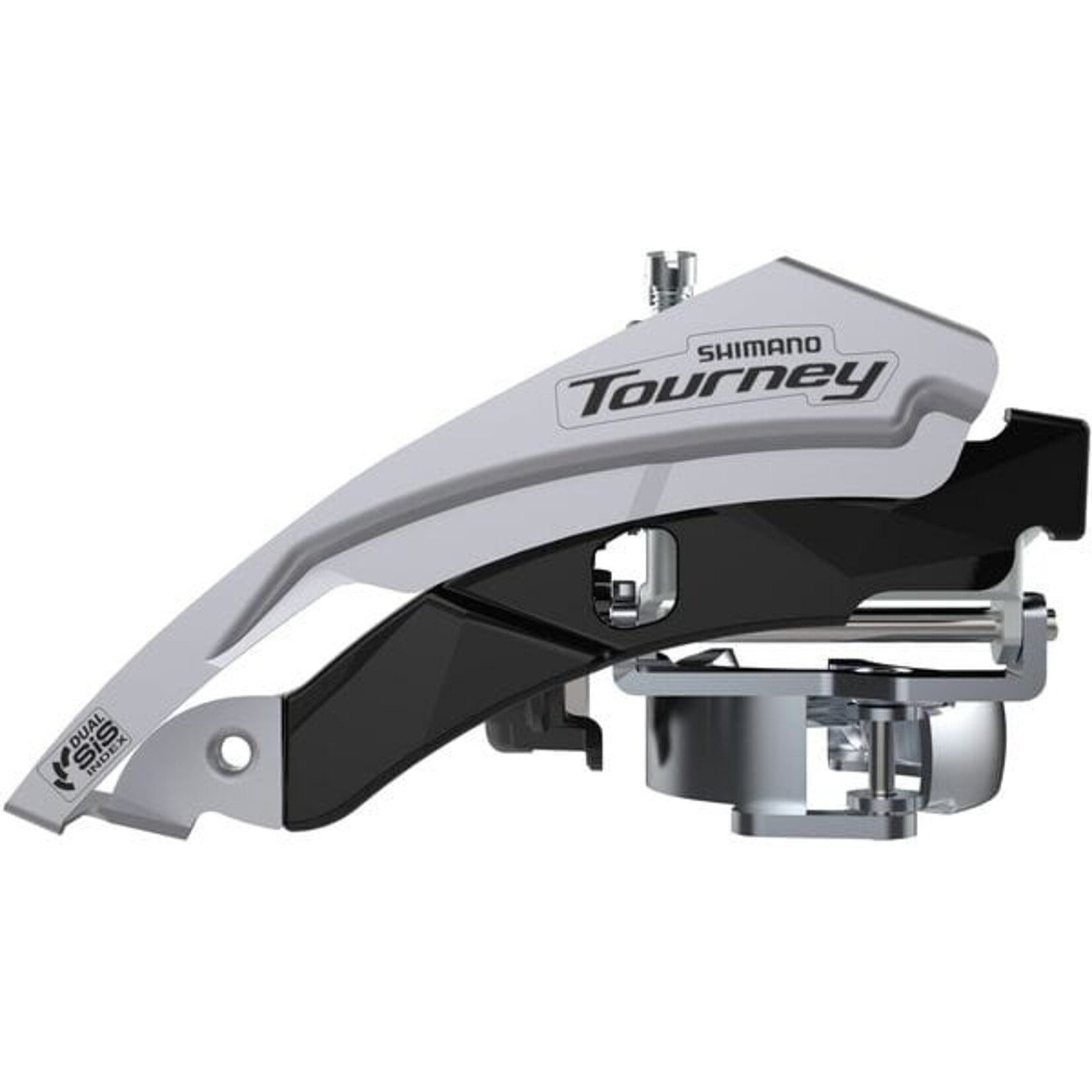

SHIMANO TOURNEY FRONT MECH

SPECIFICATIONS

Series	TOURNEY
Model no.	FD-TY601-L3
Color	1
Series color	2
Front speeds	3
Rear speeds	8/7/6
Compatible chain	HG 8/7/6-speed
Action	TOP SWING ✔
Down swing	-
SIDE SWING	-
Mount	Clamp band (mm)
28.6	-
31.8	✔
34.9	✔
E-type	With bottom bracket plate
Without bottom bracket plate	-
Direct mount	-
Brazed-on	-
Cable adjust	-
Cable route type	Dual-pull ✔
Top-pull exclusive	-
Down-pull exclusive	-
Front-pull	-
Chain line (mm)	47.5/50
Chainstay angle (deg.)	63-66
Top gear teeth	48T
Total capacity	20T
Applicable top-mid tooth difference	10T
Multi access cable fixing screw	-
Angled stroke adjust screw	-
Angled clamp band design	✔
Multi-bearing construction	-
Link bushings	-
Front clamp band Material	Steel
Finish	Zinc plated
Rear clamp band, base bracket Material	Steel
Finish	Zinc plated
Clamp screw Material	Steel
Finish	Nickel plated
Bottom bracket plate Material	-
Finish	-
Outer link Material	Steel
Finish	Zinc plated
Inner link Material	Steel
Finish	Painted
Chain guide Material	Steel
Finish	Chrome plated/Painted
Cable fixing screw Material	Steel
Finish	Nickel plated
Stroke adjusting screw Material	Steel
Finish	Zinc plated
