FrameAlloy S-XL=29", 6061 Alloy custom butted tubingTop extraction batteryUDH Interface, 135mm with 46mm Beltline
Travel100mm
ForkSR Suntour NVX 32 5TA NLO Coil, Tapered, 5x100 TA, Lock Out, 100mm Travel

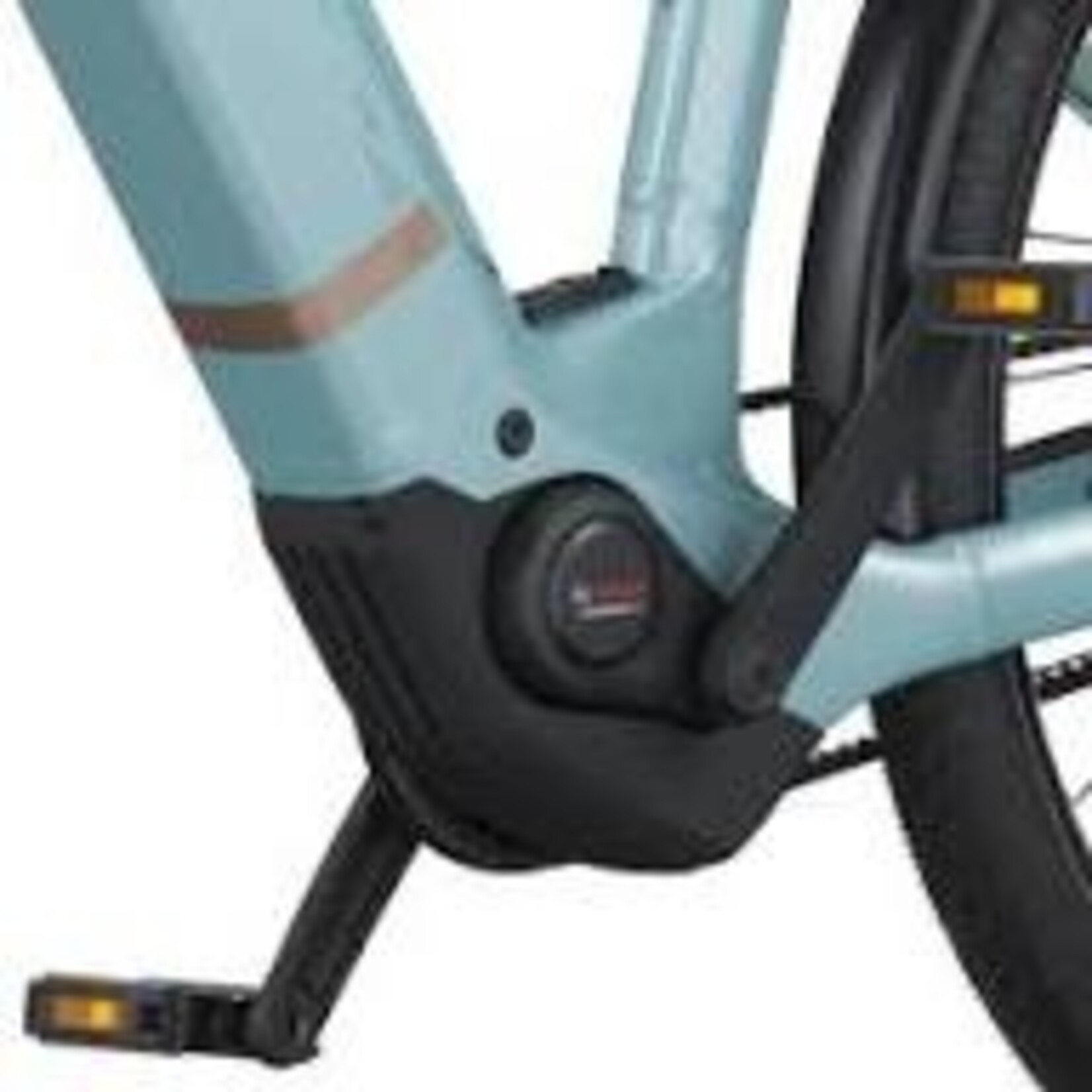

Drive UnitBosch Performance Line (BDU346Y)EU: 25kmh
BatteryPowerTube 540Wh
DisplayBosch Purion 200
Charger2A Charger
ShiftersShimano Nexus Inter 5e
CranksetMiranda Virage 170mm
ChainringGates CDC 46T w/Guard
ChainGates CDC 130T
CassetteGates CDX 32T
BrakesShimano BR-MT200 Disc
RotorFront: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm
HandlebarSyncros UC3.0 680mm, Rise 12mm, Backsweep 15°
H'stemSyncros UC 3.0 adjustable with front Light mount and Intuvia 100 mount
SeatpostSyncros 3.0, 31.6mm, 350mm
SeatSyncros Capilano
HeadsetAcros, 1.5"- 1.5"semi integ. OD 50/61mm, ID 44/55mm
Front HubShimano HBQC400B58LL, 5x100mm
Rear HubShimano Nexus Inter 5e
SpokesBlack Spokes
RimsSyncros X18 Disc
Front TireSchwalbe Big Apple Performance, 55-622
Rear TireSchwalbe Big Apple Performance, 55-622
LightsFront Lezyne Hecto E65Rear Super Bright Lezyne Light
RackRacktime carrier SnapIt 2.0 25KG
PedalsMarwi SP-828
ExtrasCurana alloy profile FenderUrsus Kickstand
Approx weight in KG29.6
Approx weight in LBS65.26
Max. System Weight160kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
