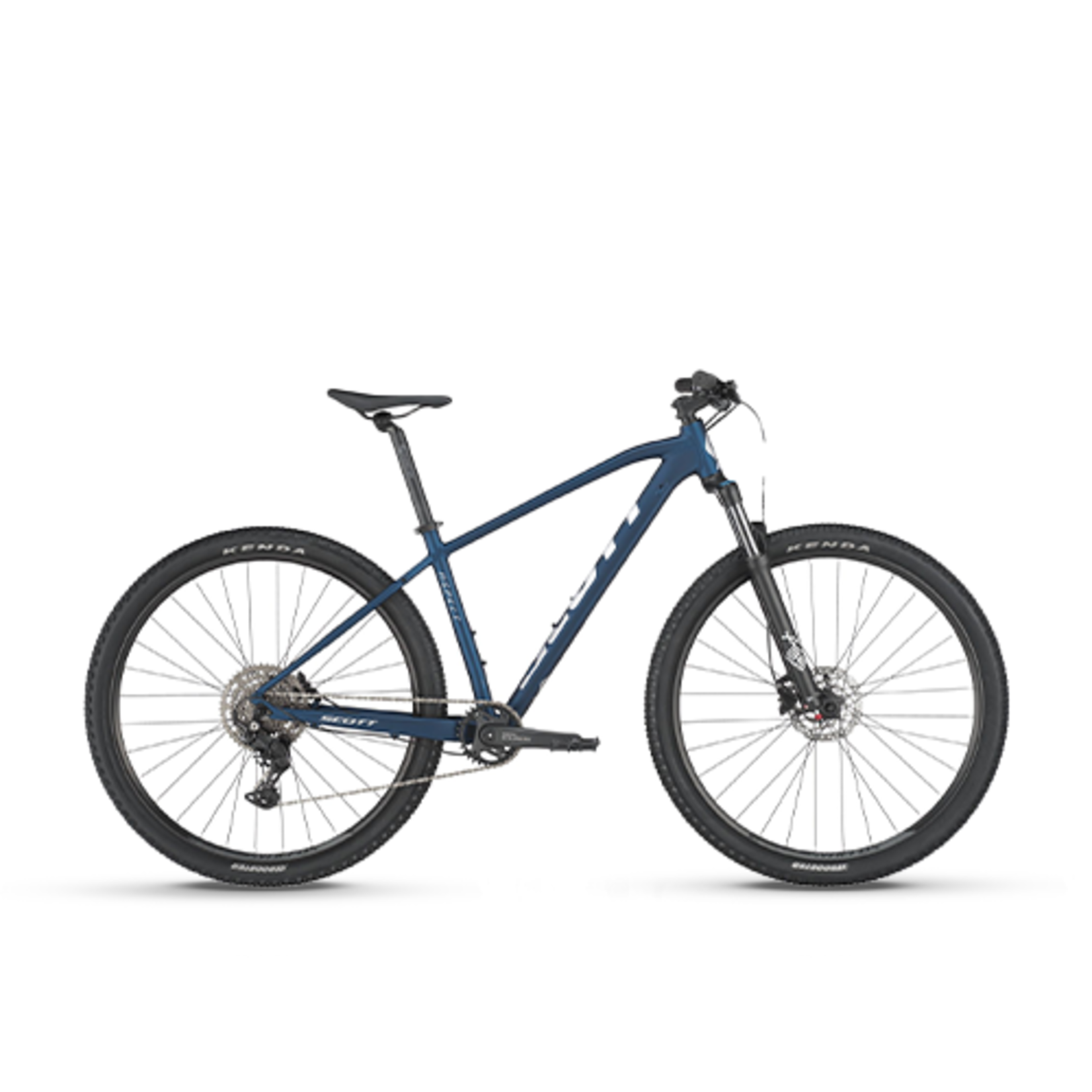

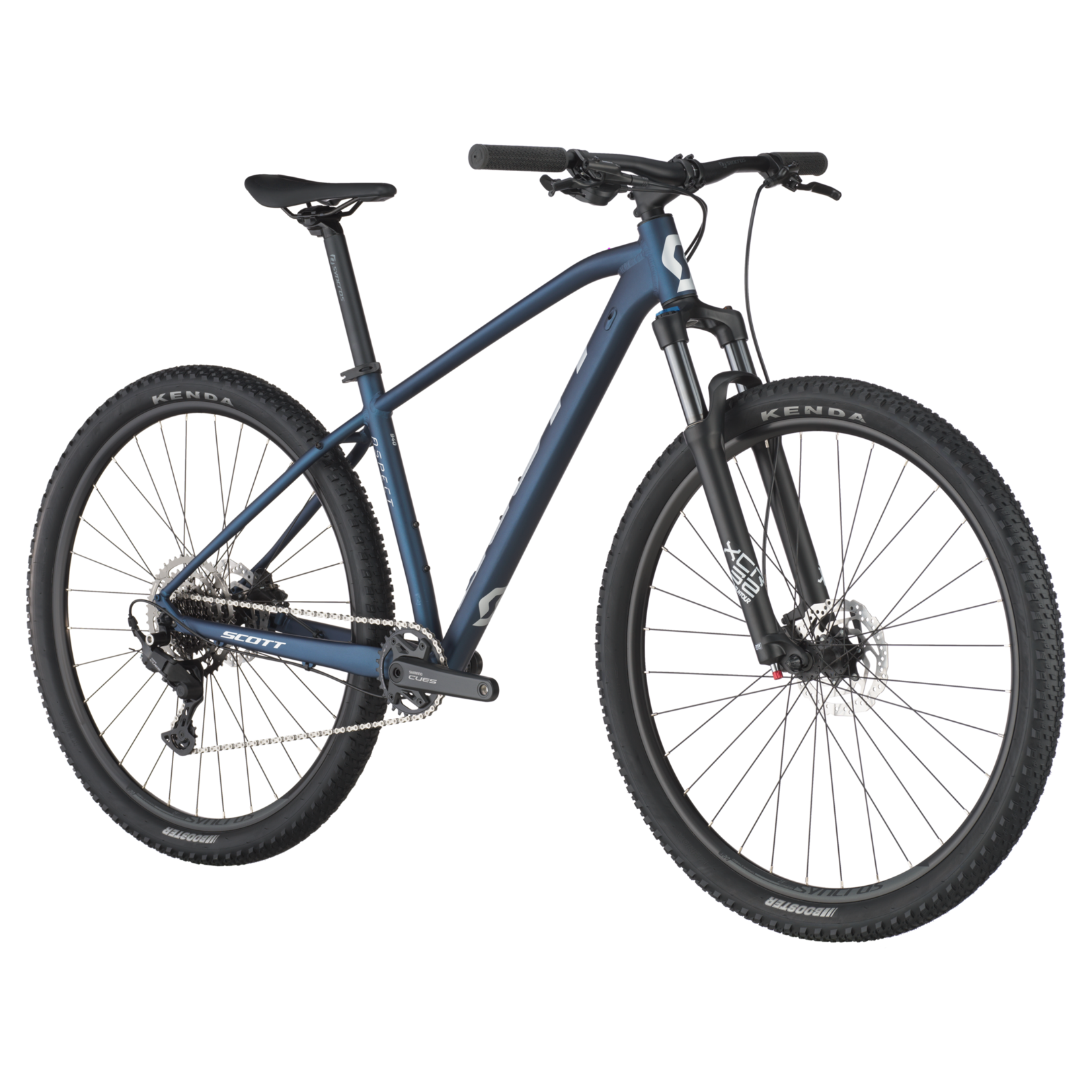

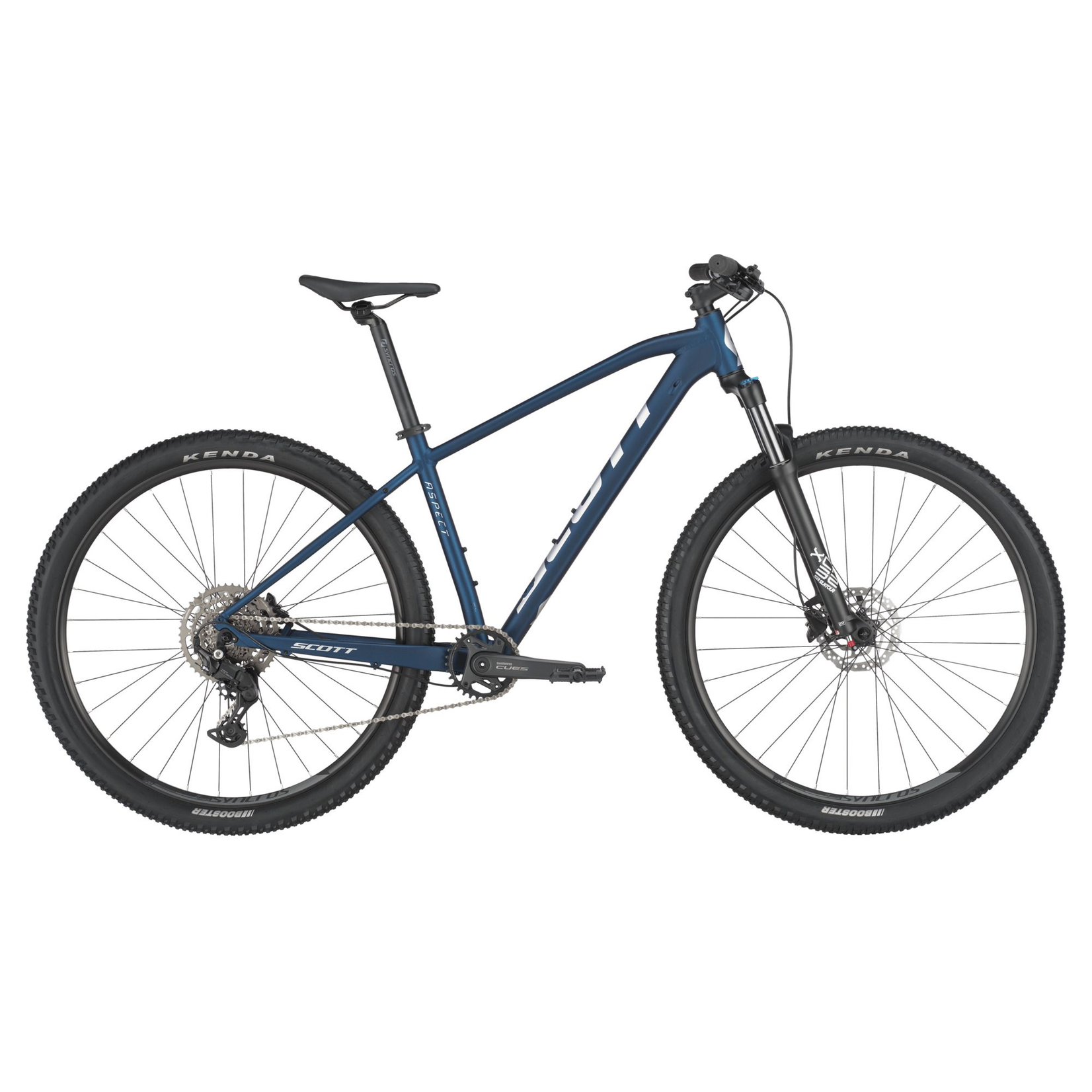

The SCOTT Aspect 940 is a hardtail mountain bike that is designed to be light, efficient and reasonably priced. Featuring a lockout mechanism for the fork, disc brakes and Syncros components, this is the perfect bike for the novice or budget conscious mountain biker.
Please note that bike specifications are subject to change without prior notice.
- Aspect 700/900 Alloy Frame
- Suntour XCR32/X1-LO-R 100mm Fork
- Shimano CUES 9 Speed
- Shimano Brakes
- Kenda Booster
| Frame |
Aspect 900-700 series / Alloy 6061 Custom Butted TubingBSA73 / Internal Cable Routing / replaceable hanger |
| Fork |
Suntour XCR32/X1-LO-RHyd. Lockout / Reb. Adj.100mm travel |
| Rear Derailleur |
Shimano CUES RD-U4000-GSShadow Type / 9 Speed |
| Shifters |
Shimano CUES SL-U4000-9 / 2 way release |
| Crankset |
Shimano CUES FC-U6000-132T |
| BB-Set |
Shimano BB-BBMT500Hollowtech II / threaded |
| Chain |
KMC X11 |
| Cassette |
Shimano CUES CS-LG400-9 / 11-46T |
| Brakes |
Shimano MT200 / Hydr. Disc Brakes |
| Rotor |
Shimano SM-RT10 CL rotor / F&R 160mm |
| Handlebar |
Syncros 3.0 / 720mmblack / 31.8mm / 12mm rise / 9° BSSyncros Pro Grip |
| H'stem |
Syncros 3.0 / 7° / Black |
| Seatpost |
Syncros 3.031.6mm / 350mm / Black |
| Seat |
Syncros 3.0 |
| Headset |
Syncros OE Press Fit / 1 1/8"OD 50mm / ID 44mm |
| Hub (Front) |
Shimano HB TX505 |
| Hub (Rear) |
Shimano FH-TX5058 |
| Spokes |
14 G / stainless / black |
| Rims |
Syncros X-20 Disc32H / black |
| Front Tire |
Kenda Booster2.4" / 30TPI |
| Rear Tire |
Kenda Booster2.4" / 30TPI |
| Pedals |
VP VP-536 |
| Approx weight in KG |
14.15 (with tubes / wo Pedals) |
| Approx weight in LBS |
31.2 (with tubes / wo Pedals) |
| Max. System Weight |
128kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage. |
