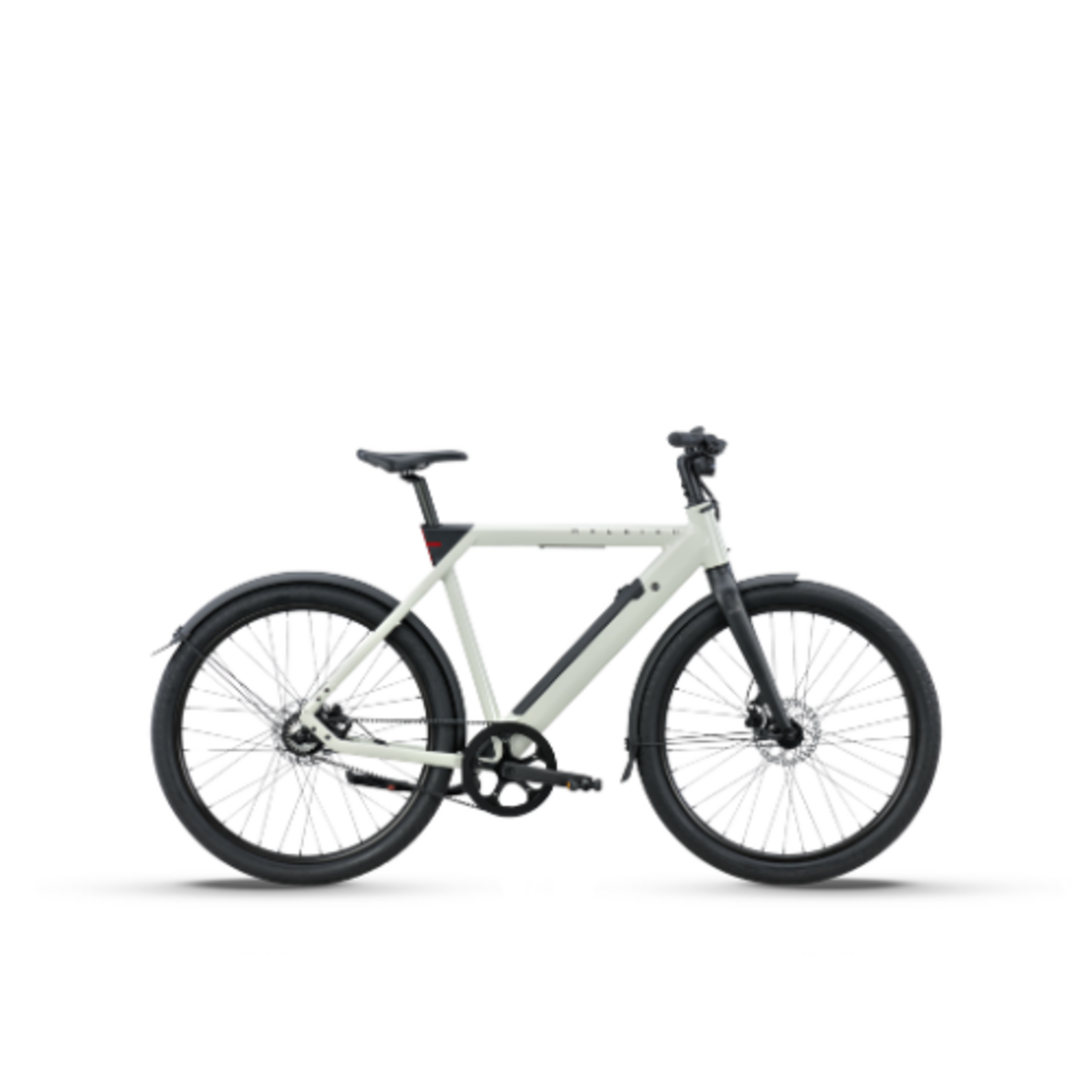

RALEIGH ONE WHITE

SKU: V25ONE20

€2.699,00

Incl. tax

In stock (1)

Bike Geometry

Chain stay length [mm]: 474 mm
Head tube angle: 72.5 degrees
Head tube length [mm]: 145 mm
Reach [mm]: 430 mm
Stack [mm]: 602 mm
Stand over height [mm]: 830 mm
Seat tube angle: 72.5 degrees
Seat tube length [mm]: 582 mm
Wheelbase [mm]: 1106 mm

Brake system

Brake Front Brand: Tektro
Brake Front Kind: HD-T3020
Brake Front Mount: Post Mount
Brake Front Type: Hydraulic Disc brake
Brake Rear Brand: Tektro
Brake Rear Mount: Post Mount
Brake Rear Type: Hydraulic Disc brake

Carrier

Carrier Front Kind: Optional

Drivetrain

Cassette Teeth: 22
Chain Brand: Gates
Chain Type: Belt
Crankset Brand: Samox
Crankset Kind: EC33-F0-JIS-R EC33-F5-JIS-L
Crankset Teeth: 60
Crankset Type: single
Gear Type: Single Speed
Number Of Gears: 1

E-bike components

Battery Brand: Vestel
Battery Kind: 36V x 360 Wh
Battery Location: Downtube
Battery Removeable: Yes
Charger Brand: MIVICE
Charger Kind: 5A
Charger Type: Quick Charger
Max Support Speed [km/h]: 25 km/h
Motor Brand: MIVICE
Motor Location: Rearwheel
Sensor: Pedalforce
Power Handle: Yes

Frame and more

Framesize: 58 cm
Front Fork Type: Non Suspension

Handlebar and Saddle

Handlebar Brand: Raleigh
Handlebar Kind: One piece handlebar with stem design by Raleigh
Handlebar Material: Aluminium
Headset Kind: 1.5"+1.5"
Headset Type: Integrated
Saddle Brand: Velo
Saddle Kind: VL-3625
Seatpost Material: Aluminium
Seatpost Type: Non Suspension

Lighting

Front Light Kind: Integrated front light, 170lm K-mark certified
Front Light Type: Via E-bike System
Rear Light Kind: Integrated rear light, 10lm K-mark certified

Locks

Lock Kind: GNSS + LTE-M

Other

Connectivity App: Yes

Wheels and wheel components

Tyre Size Etrto: 56-584
Wheel Size Rear: 27.5
