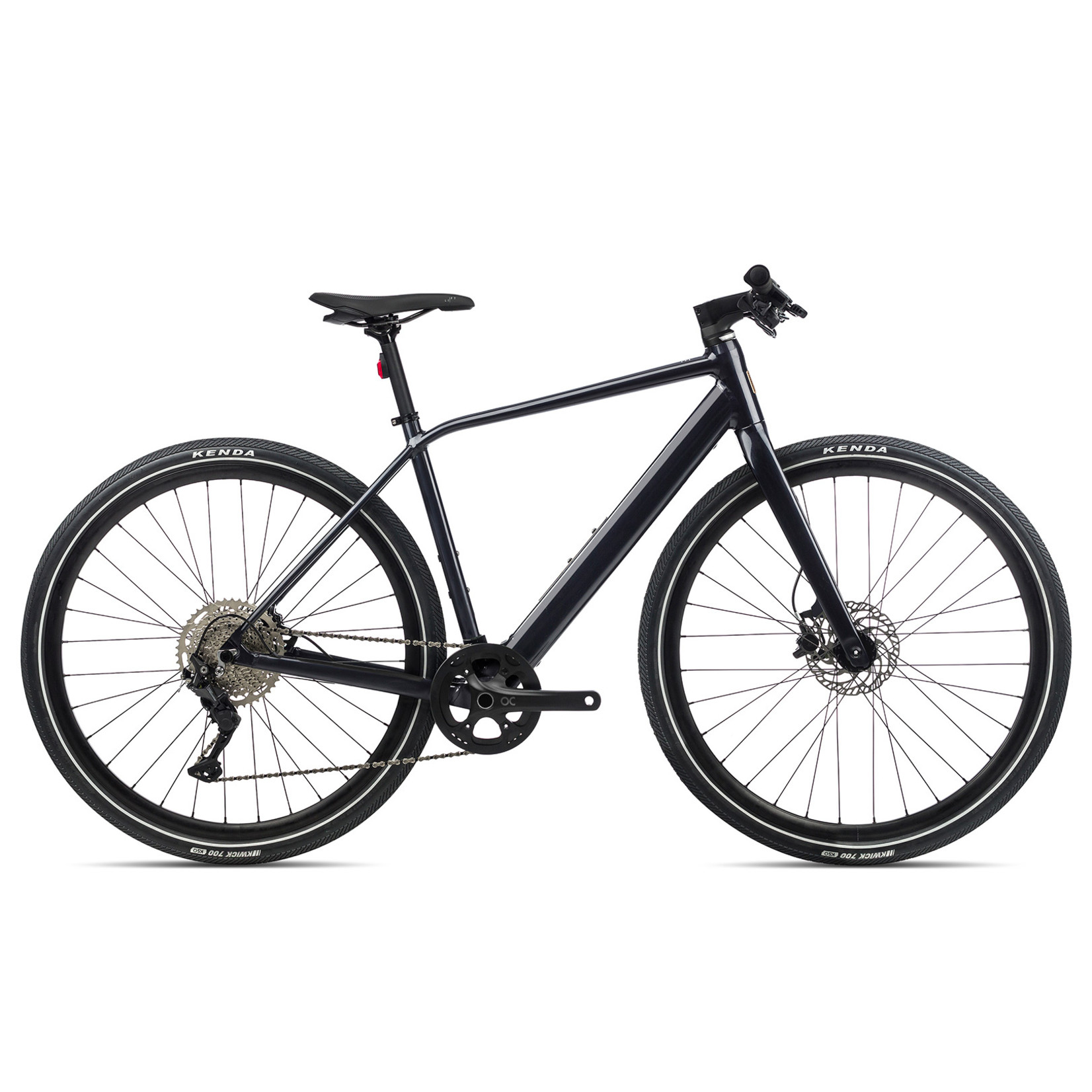

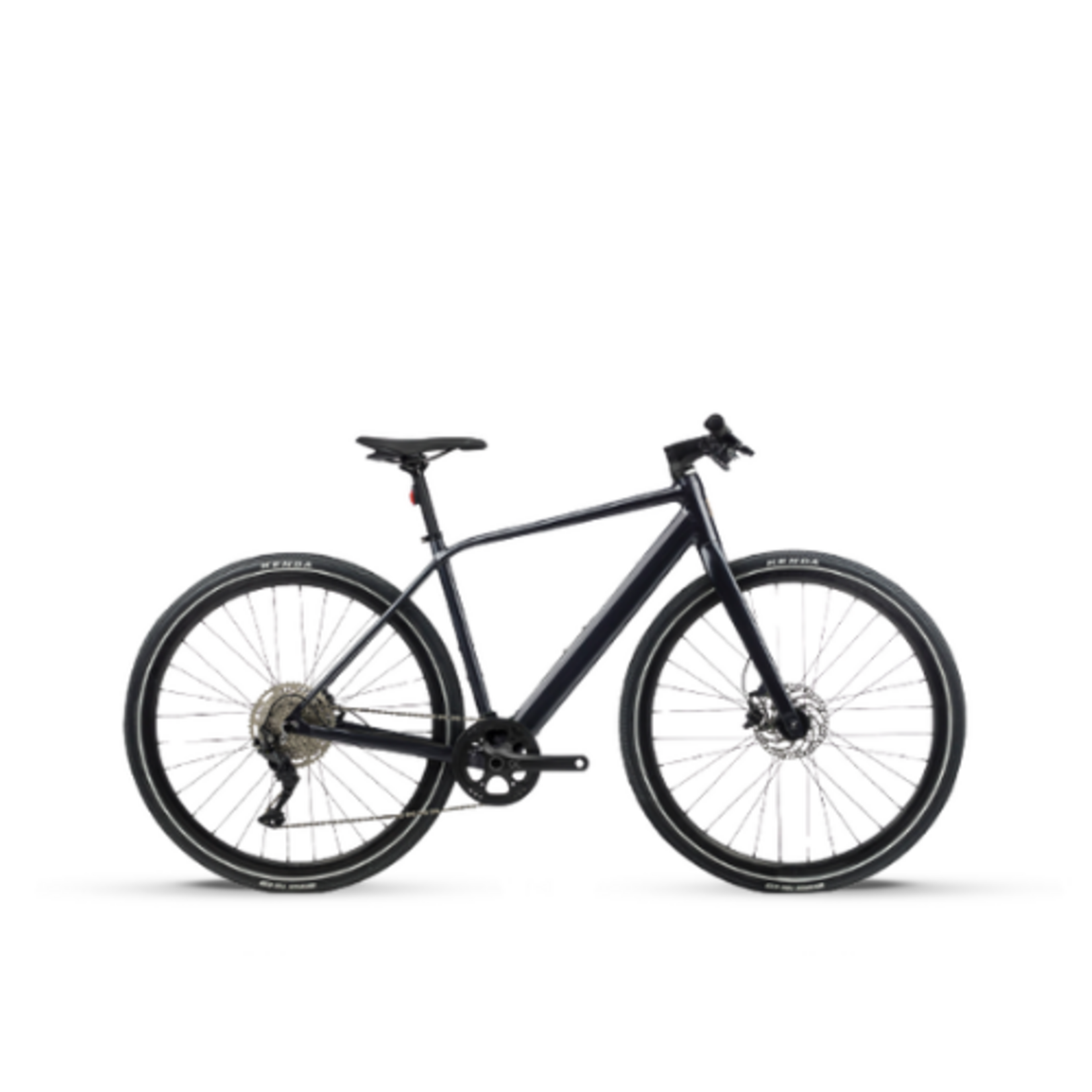

ORBEA VIBE H30

SPECIFICATIONS

FRAME	Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximum tire, 1" 1/2 semi head set, 41x86.5 Pressfit BB, carrier and fenders compatible
FORK	Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximum tire, flat mount disc mount, Thrue Axle 12x100mm, Long mudguards compatible.
CRANKSET	OC 42t, w/Chainguard
HEADSET	Acros Alloy 1-1/2" Internal Cable Routing
HANDLEBAR	Alloy 31.8mm 12mm Rise 700mm
STEM	OC1 31.8mm interface -6º
SHIFTERS	Shimano Deore M4100
BRAKES	Magura MT30 Hydraulic Disc Easy Route Connection
CASSETTE	Shimano CS-M4100 11-46t 10-Speed
REAR DERAILLEUR	Shimano Deore M5120 SGS Shadow Plus
CHAIN	KMC X10
WHEELS	Ready GR
TYRES	Kenda K1052 700x45C Reflective type+puncture protection
SEATPOST	OC 27.2 Offset 0, for integrated light
SADDLE	Selle Royal Lift 1215 URN 278x145mm
FRONT POSITION LIGHT	Front position light, on the head tube, COB Led, On/Off, 60 Lumen, ECE50.
FRONT LIGHT	Consult other components
REAR LIGHT	Lezyne FENDER STVZO seatpost mounting 11 lumens
QUICK STAND	Consult other components
MOTOR	Ebikemotion X35 Plus 25kmh
BATTERY	Ebikemotion 36V/6.9A 248Wh ANT+
RANGE EXTENDER	Consult other components
DISPLAY	Consult other components
CHARGER	Ebikemotion X35
REMOTE	Ebikemotion iWoc TRIO
FRONT WHEEL AXLE	Orbea Thru Axle 12x100mm M12x2 P1 Hollow
VIBE SHEET MYO LITE
BELL	Knog OI Classic
