| Frame |
Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel |
| *Fork |
Size: XS , S RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 140 mm travel |
| |
Size: S , M , ML , L , XL , XXL RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 140 mm travel |

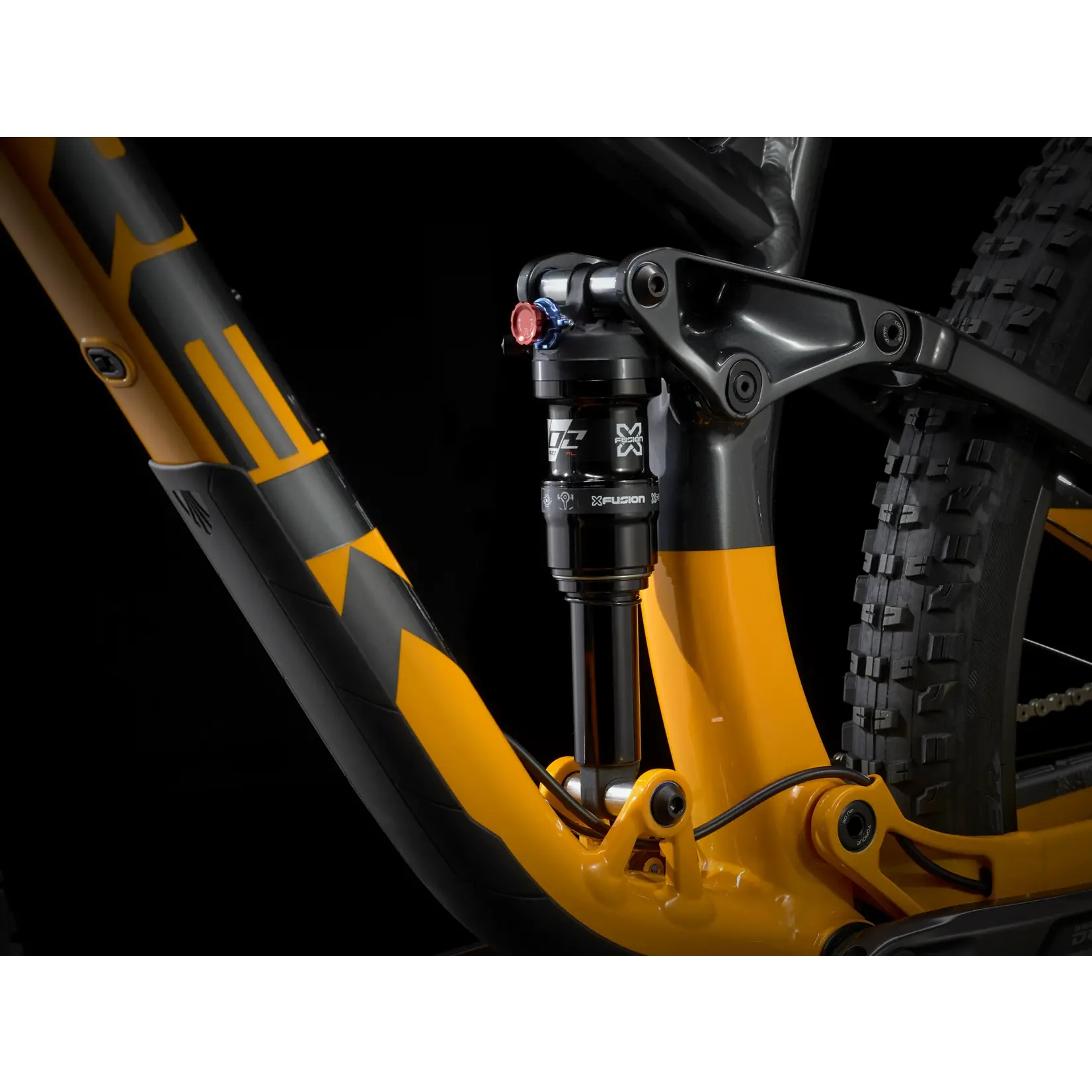

| *Shock |
Size: XS , S X-Fusion Pro 2, 2-position damper, 210 mm x 52.5 mm |
| |
Size: S , M , ML , L , XL , XXL X-Fusion Pro 2, 2-position damper, 210 mm x 55 mm |
| Max compatible fork travel |
150mm (561mm axle-to-crown) |
| Hub front |
Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle |
| Hub rear |
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Skewer rear |
Bontrager Switch thru-axle, removable lever |
| Rim |
Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve |
| Spokes |
14 g stainless steel, black |

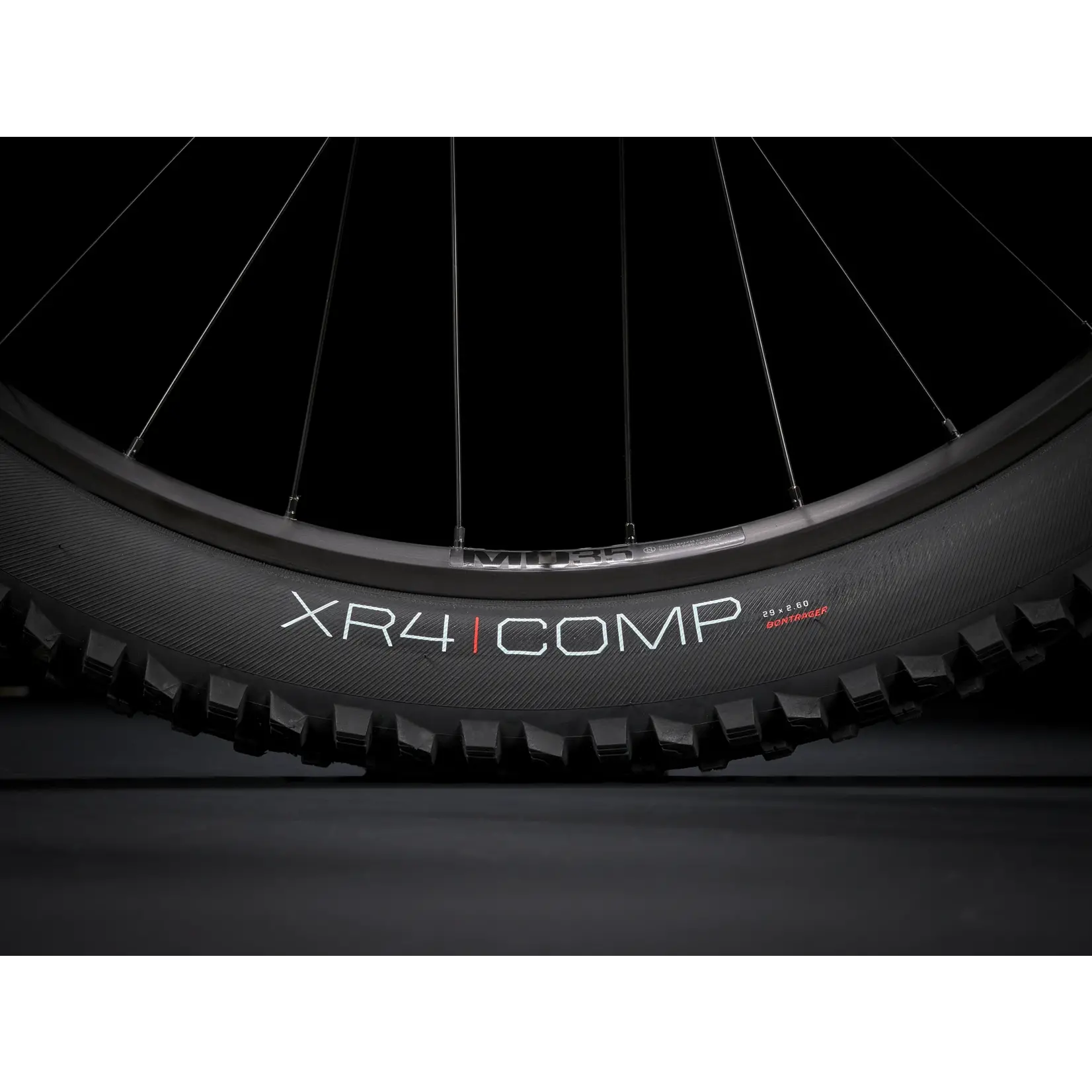

| *Tyre |
Size: XS , S Bontrager XR4 Comp, wire bead, 30 tpi, 27.5x2.60" |
| |
Size: S , M , ML , L , XL , XXL Maxxis Rekon EXO, wire bead, 60 tpi, 29x2.60'' |
| |
Size: S , M , ML , L , XL , XXL Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60" |
| Rim strip |
Bontrager TLR |
| Max tyre size |
Frame: 29x2.60", Fork: See manufacturer |
| Shifter |
Shimano Deore M6100, 12-speed |

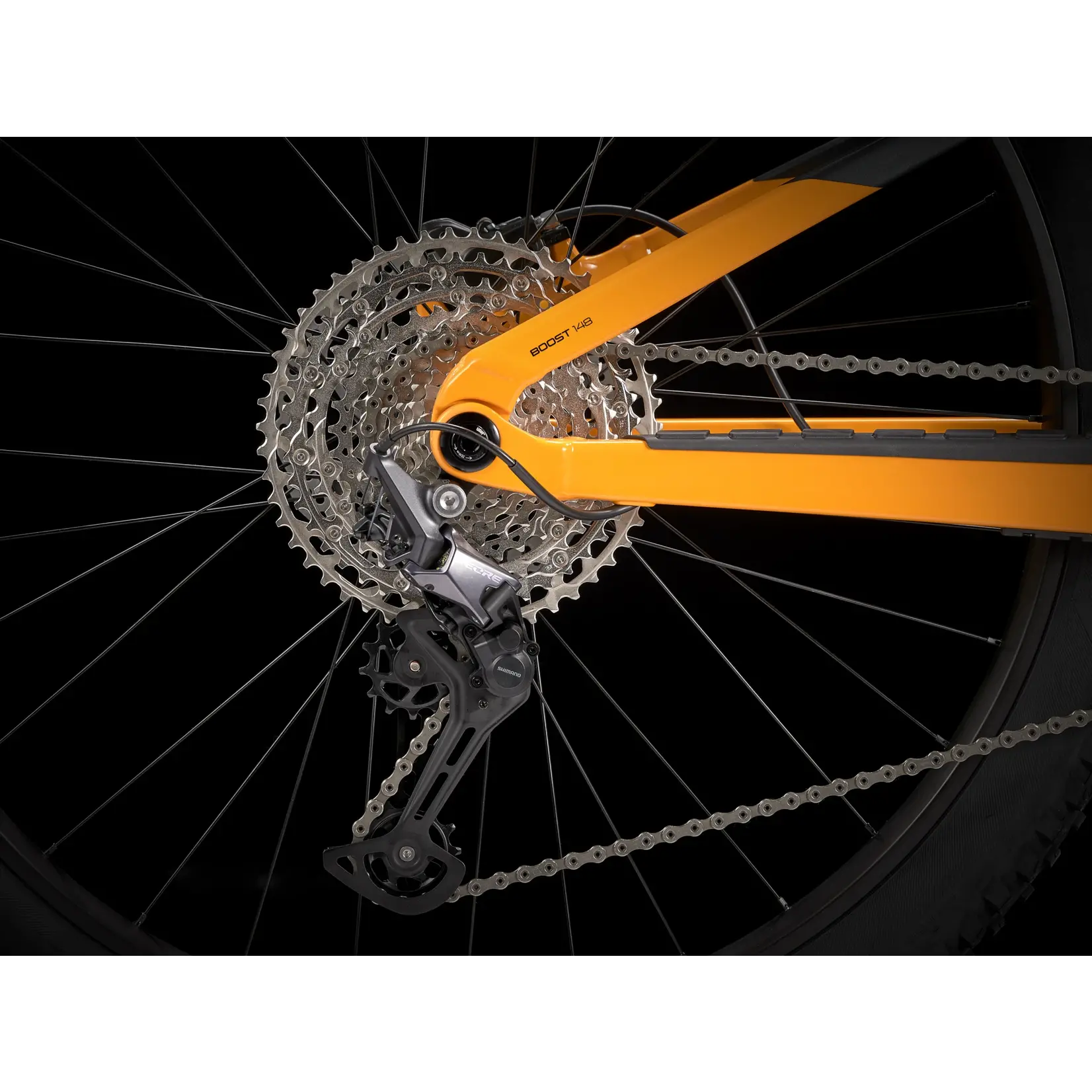

| Rear derailleur |
Shimano Deore M6100, long cage |
| *Crank |
Size: XS , S , M , ML , L Shimano MT511, 30T steel ring, 52 mm chainline, 170 mm length |
| |
Size: M , ML , L , XL , XXL Shimano MT511, 30T steel ring, 52 mm chainline, 175 mm length |
| Bottom bracket |
Shimano MT500, 92 mm, PressFit |
| Cassette |
Shimano Deore M6100, 10-51, 12-speed |
| Chain |
Shimano Deore M6100, 12-speed |
| Max. chainring size |
1x: 34T |
| Saddle |
Bontrager Arvada, steel rails, 138 mm width |
| *Seatpost |
Size: XS , S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length |
| |
Size: M , ML , L , XL , XXL TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length |
| Handlebar |
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
| Stem |
Bontrager Rhythm Comp, 31.8 mm, 0-degree, 50 mm length |
| Head set |
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom |

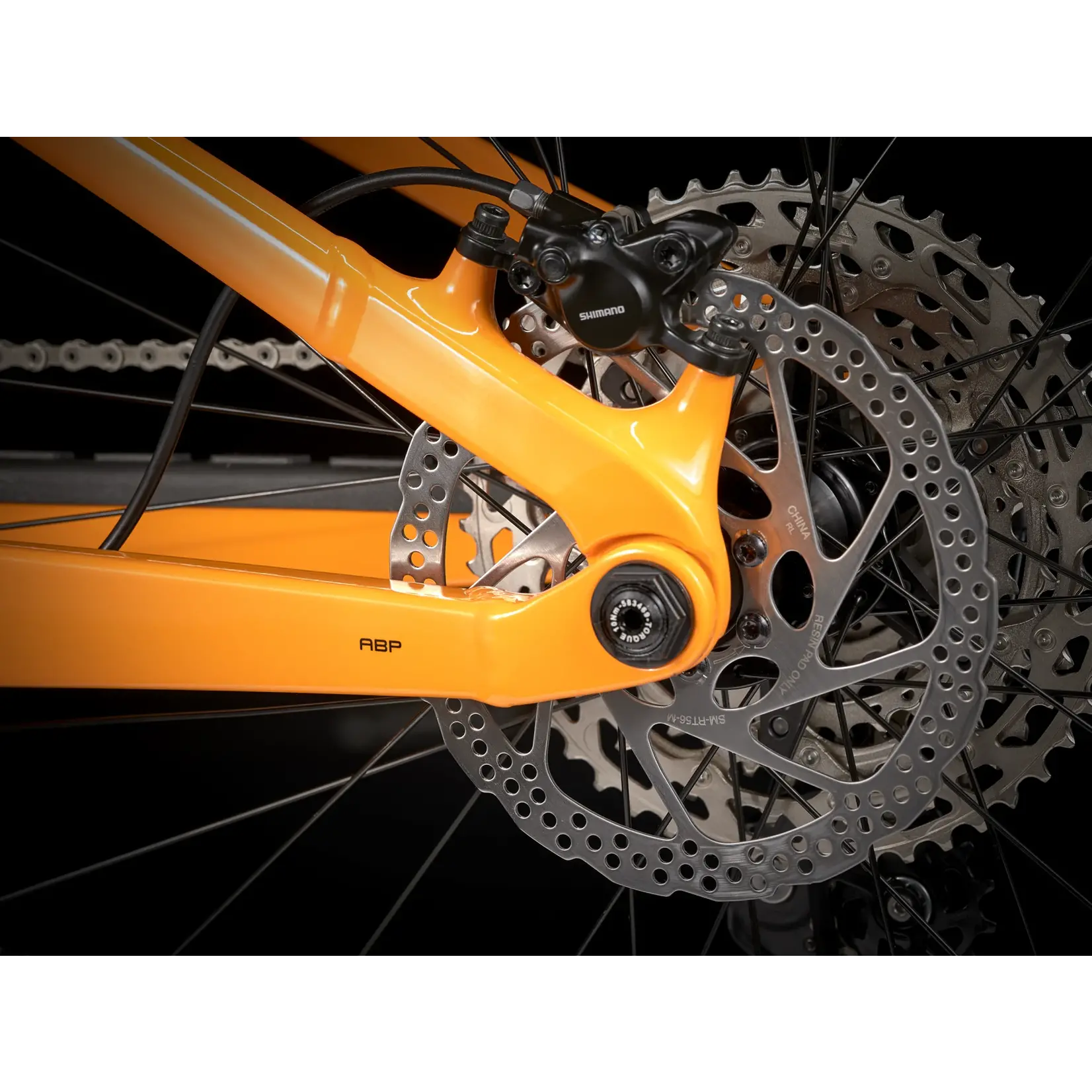

| Brake |
Shimano hydraulic disc, MT201 lever, MT200 calliper |
| Brake rotor |
Shimano RT56, 6-bolt, 180 mm |
| Weight |
M - 15.70 kg/34.62 lb |
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
