| FRAME |
100 Series Alpha Aluminium, Tapered Head Tube, Internal Routing, Mudguard Mounts, Flat-Mount Disc, UDH, 142x12 Mm Thru Axle |
| FORK |
Domane AL Carbon, Tapered Carbon Steerer, Internal Brake Routing, Fender Mounts, Flat Mount Disc, 12x100mm Thru Axle |
| WEIGHT |
56 - 10.55 Kg / 23.26 Lbs |
| WEIGHT LIMIT |
This Bike Has A Maximum Total Weight Limit (Combined Weight Of Bicycle, Rider And Cargo) Of 125 Kg (275 Lb). |
| *SHIFTER |
Size: 44, 49, 52, 54, 56, 58, 61Shimano Claris ST-R2000-R, 8 Speed, Right |
| |
Size: 44, 49, 52, 54, 56, 58, 61Shimano Claris ST-R2000-L, 8 Speed, Left |

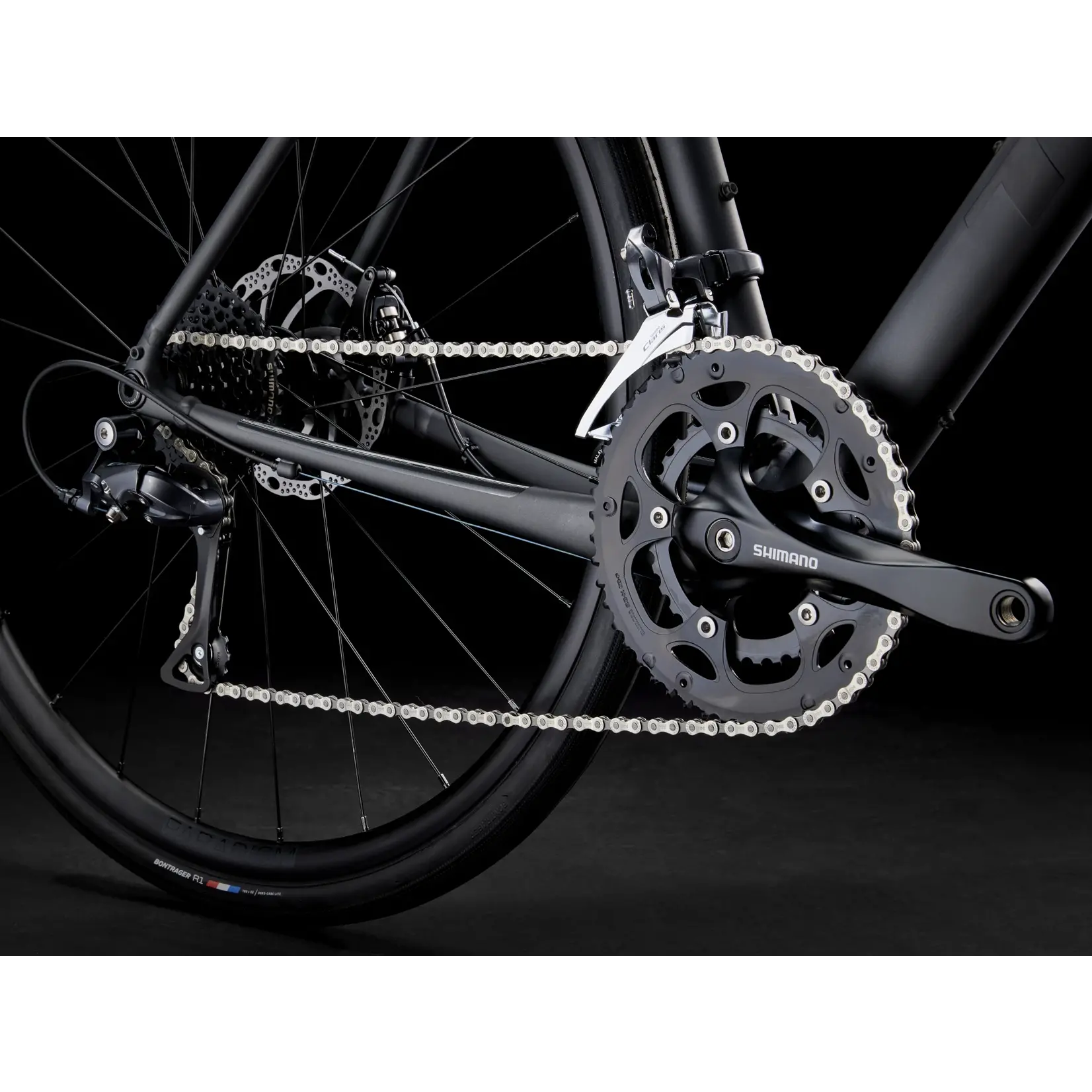

| FRONT DERAILLEUR |
Shimano Claris R2000, 31.8 Mm Clamp |
| REAR DERAILLEUR |
Shimano Claris R2000, Medium Cage, 34T Max Cog |
| *CRANK |
Size: 44Shimano RS200, 50/34 (Compact), 165 Mm Length |
| |
Size: 49, 52, 54Shimano RS200, 50/34 (Compact), 170 Mm Length |
| |
Size: 56, 58, 61Shimano RS200, 50/34 (Compact), 175 Mm Length |
| BOTTOM BRACKET |
Shimano UN300, 68 Mm, Threaded Cartridge, 110 Mm Spindle |
| CASSETTE |
Shimano HG31, CS-HG31, 11-32, 8 Speed |
| CHAIN |
Shimano Sora HG71, 8 Speed |
| MAX. CHAINRING SIZE |
1x: 50T, 2x: 50/34 |
| HUB FRONT |
Formula RX-512 Alloy, 6-Bolt, 100x12 Mm Thru Axle |
| SKEWER FRONT |
Bontrager Switch Chamfered Thru Axle, Removable Lever |
| HUB REAR |
Formula RX-142 Alloy, 6-Bolt, Shimano 11-Speed Freehub, 142x12 Mm Thru Axle |
| SKEWER REAR |
Bontrager Switch Chamfered Thru Axle, Removable Lever |
| RIM |
Bontrager Paradigm SL, Tubeless Ready, 24-Hole, 21 Mm Width, Presta Valve |
| SPOKES |
14 G Stainless Steel, Black |
| TYRE |
Bontrager R1 Hard-Case Lite, Wire Bead, 60 Tpi, 700x32 Mm |
| MAX TYRE SIZE |
38mm Without Mudguards, 35mm With Mudguards |
| SADDLE |
Verse Short, Steel Rails, 145 Mm Width |
| *SEATPOST |
Size: 44, 49Bontrager Comp, 6061 Alloy, 27.2 Mm, 8 Mm Offset, 250 Mm Length |
| |
Size: 52, 54, 56, 58, 61Bontrager Comp, 6061 Alloy, 27.2 Mm, 8 Mm Offset, 330 Mm Length |
| *HANDLEBAR |
Size: 44Bontrager Comp, Alloy, 31.8 Mm, 80 Mm Reach, 121 Mm Drop, 36 Cm Control Width, 40 Cm Drop Width |
| |
Size: 44, 49Bontrager Comp VR-S, Alloy, 31.8 Mm, 81 Mm Reach, 118 Mm Drop, 38 Cm Width |
| |
Size: 49Bontrager Comp, Alloy, 31.8 Mm, 80 Mm Reach, 121 Mm Drop, 38 Cm Control Width, 42 Cm Drop Width |
| |
Size: 52Bontrager Comp, Alloy, 31.8 Mm, 80 Mm Reach, 121 Mm Drop, 40 Cm Control Width, 44 Cm Drop Width |
| |
Size: 52Bontrager Comp VR-S, Alloy, 31.8 Mm, 81 Mm Reach, 118 Mm Drop, 40 Cm Width |
| |
Size: 54, 56Bontrager Comp, Alloy, 31.8 Mm, 80 Mm Reach, 121 Mm Drop, 42 Cm Control Width, 46 Cm Drop Width |
| |
Size: 54, 56Bontrager Comp VR-C, Alloy, 31.8 Mm, 100 Mm Reach, 124 Mm Drop, 42 Cm Width |
| |
Size: 58, 61Bontrager Comp, Alloy, 31.8 Mm, 80 Mm Reach, 121 Mm Drop, 44 Cm Control Width, 48 Cm Drops Width |
| |
Size: 58, 61Bontrager Comp VR-C, Alloy, 31.8 Mm, 100 Mm Reach, 124 Mm Drop, 44 Cm Width |
| HANDLEBAR TAPE |
Bontrager Supertack Perf Tape |
| *STEM |
Size: 44Bontrager Elite, 31.8 Mm, Blendr-Compatible, 7-Degree, 70 Mm Length |
| |
Size: 49Bontrager Elite, 31.8 Mm, Blendr-Compatible, 7-Degree, 80 Mm Length |
| |
Size: 52, 54Bontrager Elite, 31.8 Mm, Blendr-Compatible, 7-Degree, 90 Mm Length |
| |
Size: 56, 58Bontrager Elite, 31.8 Mm, Blendr-Compatible, 7-Degree, 100 Mm Length |
| |
Size: 61Bontrager Elite, 31.8 Mm, Blendr-Compatible, 7-Degree, 110 Mm Length |
| BRAKE |
Tektro C550 Mechanical Disc Brake, Dual Piston, Flat Mount |
| BRAKE ROTOR |
Tektro Wave, 6-Bolt, 160 Mm |
| ROTOR SIZE |
Max Brake Rotor Sizes: 160 Mm Front And Rear |
