Genuine replacement parts
These original replacements will get your wheels working like new.
Product details

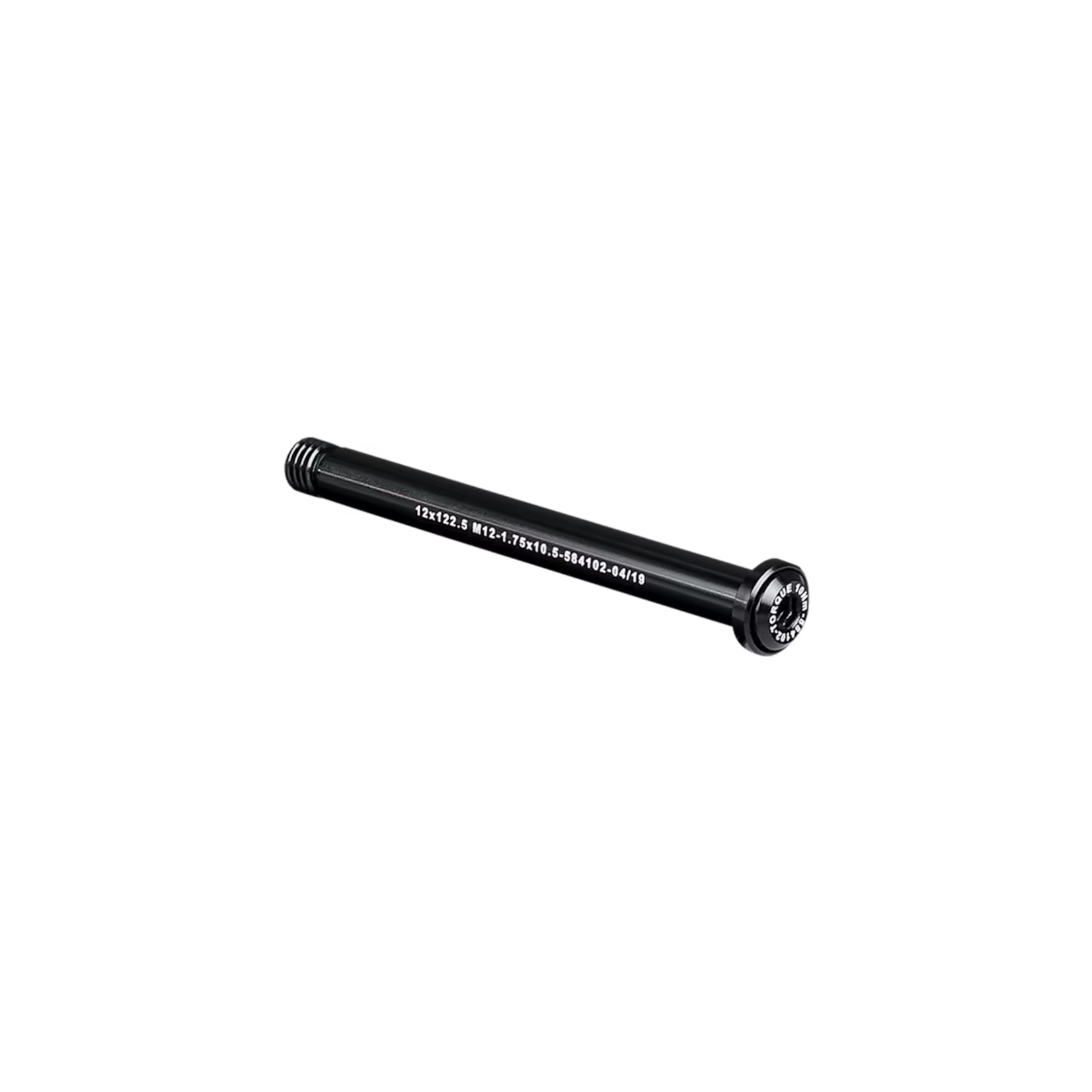

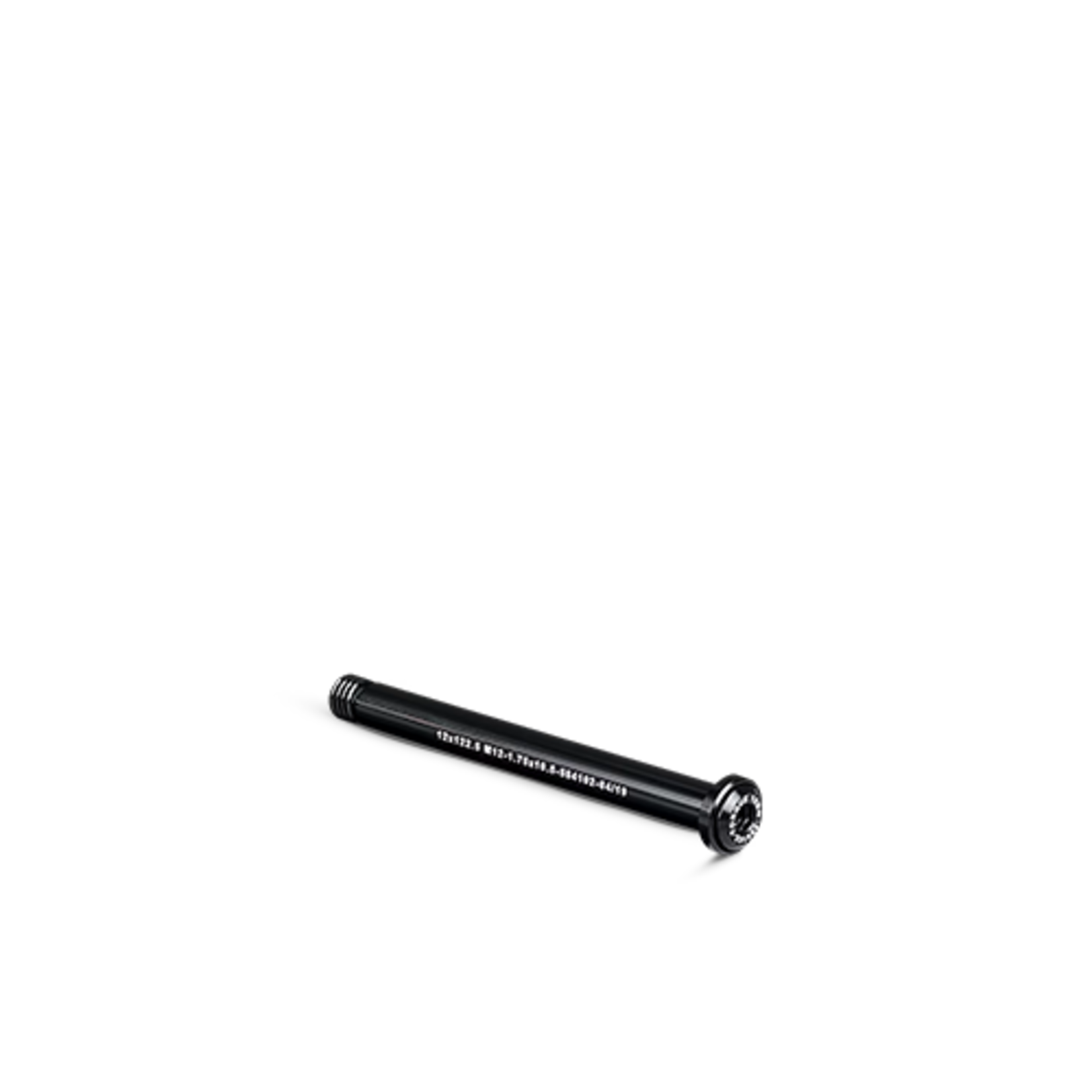

Alloy thru-axle that can be used with a 6mm hex key or with a lever
Keep it light by removing the lever and instead use a 6mm hex key
Keep it convenient by keeping the lever inside the tool
Lever is held securely by internal O-ring
Lever sold separately
For use with Trek model-specific rigid forks only
| Size |
Front, 118.5mm |
Front, 122.5mm |
Front, 122mm |
Front, 125mm |
Front, 139mm |
Front, 148mm |
Front, 158mm |
Front, 198mm |
| FT/RR |
Front |
Front |
Front |
Front |
Front |
Front |
Front |
Front |
| Length |
118.5 mm |
122.5 mm |
122 mm |
125 mm |
139 mm |
148 mm |
158mm |
198 mm |
| Axle diameter |
12 mm |
12 mm |
12 mm |
15 mm |
15 mm |
15 mm |
15 mm |
15 mm |
| Hub width |
100 mm |
100 mm |
100x12/100x5 mm |
100 mm |
100 mm |
100 mm |
110 mm |
150 mm |
| Attachment |
Thru axle |
Thru axle |
Thru axle |
Thru axle |
Thru axle |
Thru axle |
Thru axle |
Thru axle |
| Thru axle threading |
M12 x 1.75 |
M12 x 1.75 |
M12 x 1.75 |
M15 x 1.5 |
M14 x 1.5 |
M15 x 1.5 |
M14 x 1.5 |
M15 x 1.5 |
| Material |
Aluminium |
Aluminium |
Aluminium |
Aluminium |
Aluminium |
Aluminium |
Aluminium |
Aluminium |
