| Frame |

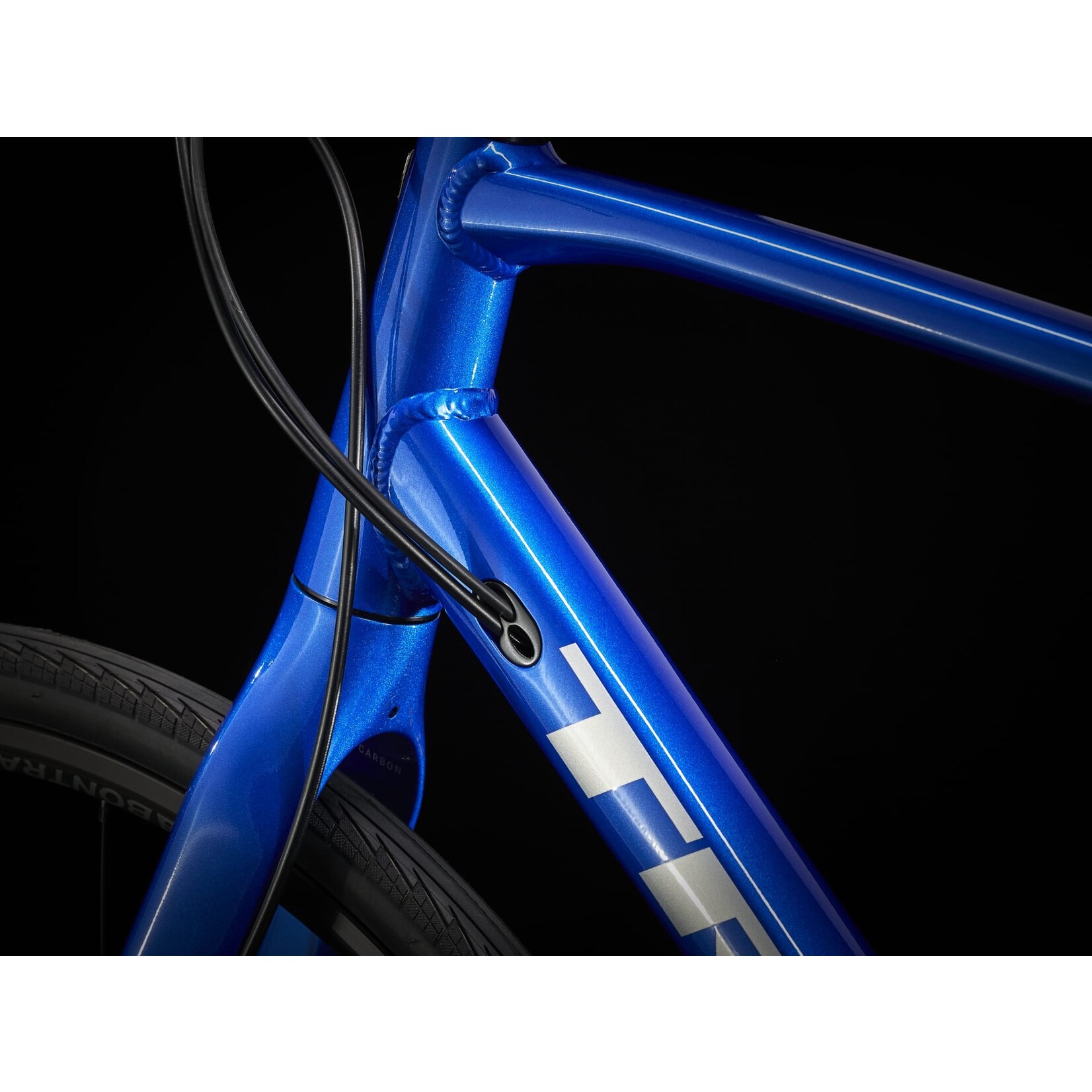

Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR |
| Fork |
FX Carbon, rack and mudguard mounts, flat-mount disc, 405 mm axle-to-crown. ThruSkew 5 mm QR |
| Hub front |
Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| Skewer front |
130x5 mm QR, ThruSkew |
| Hub rear |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear |
152x5 mm QR |

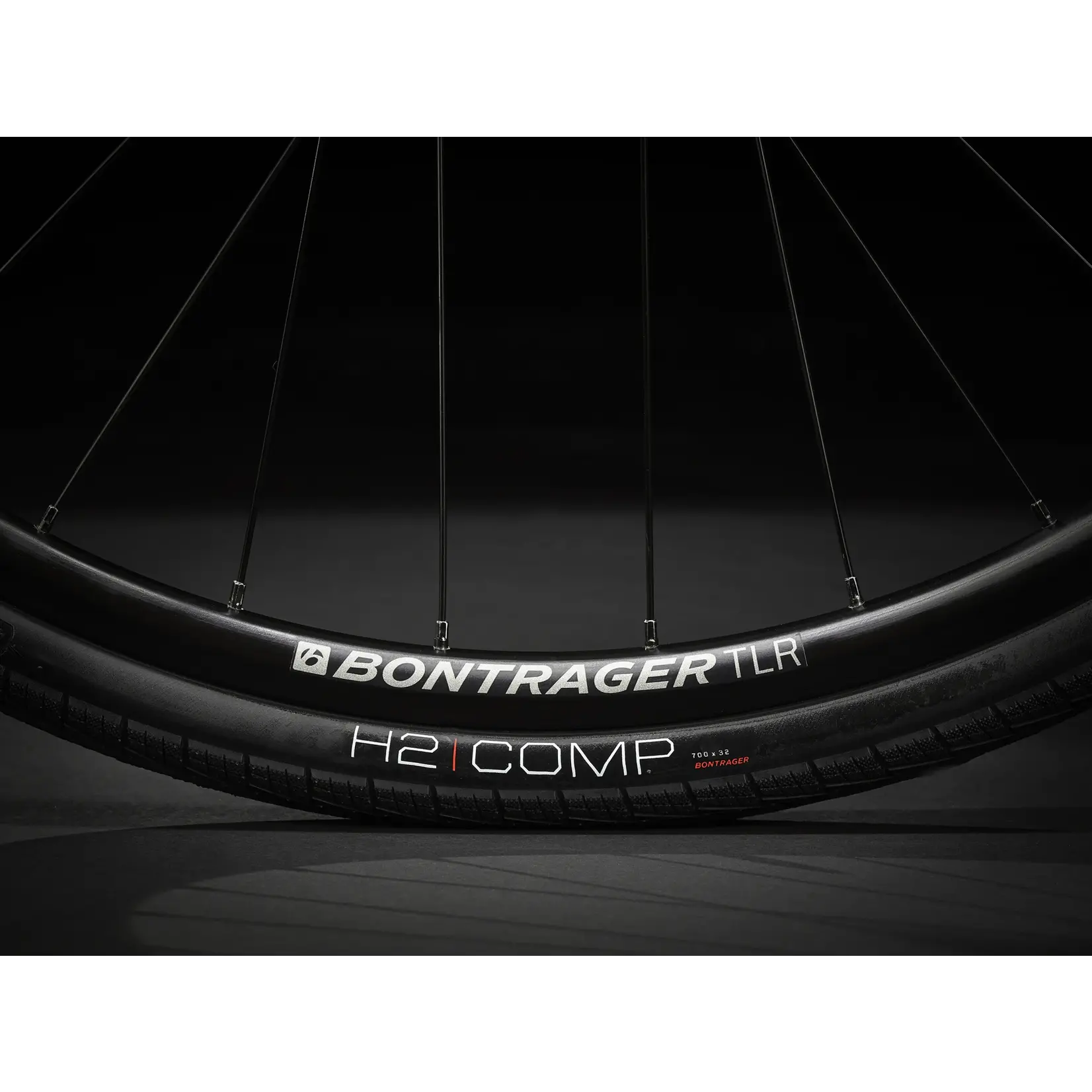

| Rim |
Bontrager Tubeless Ready Disc, 32-hole, Presta valve |
| Tyre |
Bontrager H2 Comp, wire bead, 30 tpi, 700x32 mm |
| Max tyre size |
700x38mm without mudguards, 700x35mm with mudguards |
| Shifter |
Shimano Deore M4100, 10-speed |

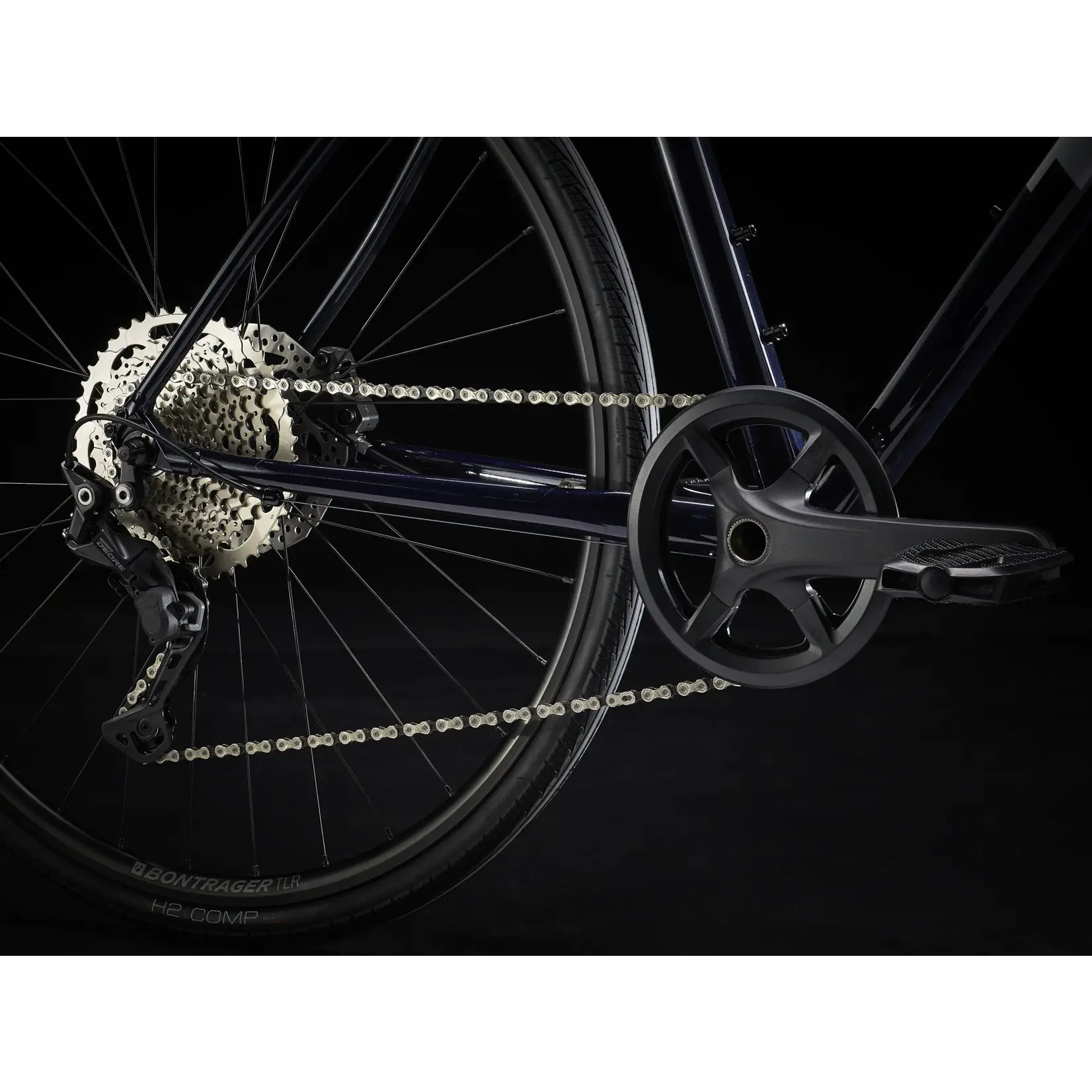

| Rear derailleur |
Shimano Deore M5120, long cage |
| *Crank |
Size: XS, S, MProwheel alloy, 40T narrow-wide ring, 170 mm length |
| |
Size: L, XL, XXLProwheel alloy, 40T narrow-wide ring, 175 mm length |
| Cassette |
Shimano Deore M4100, 11-46, 10-speed |
| Chain |
KMC X10, 10-speed |
| Pedal |
Bontrager City pedals |
| Max. chainring size |
1x: 42T, 2x/3x: 48T |
| Saddle |
Bontrager H1 |
| Seatpost |
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| *Handlebar |
Size: XS, S, MBontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width |
| |
Size: L, XL, XXLBontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width |

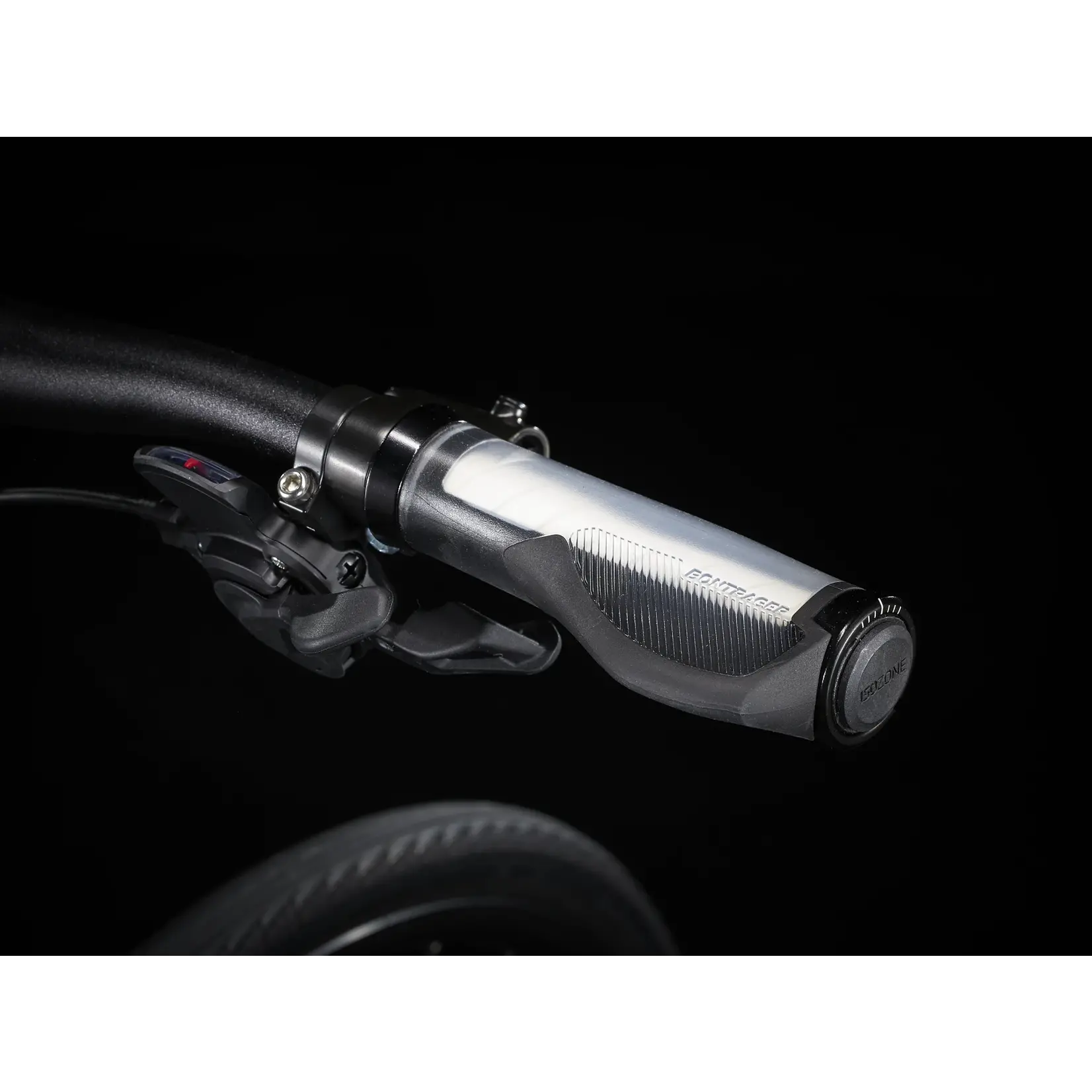

| Grips |
Bontrager Satellite IsoZone Plus, lock-on, ergonomic |
| *Stem |
Size: XS, SBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
| |
Size: M, L, XL, XXLBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length |
| Head set |
1 1/8" steel threadless |

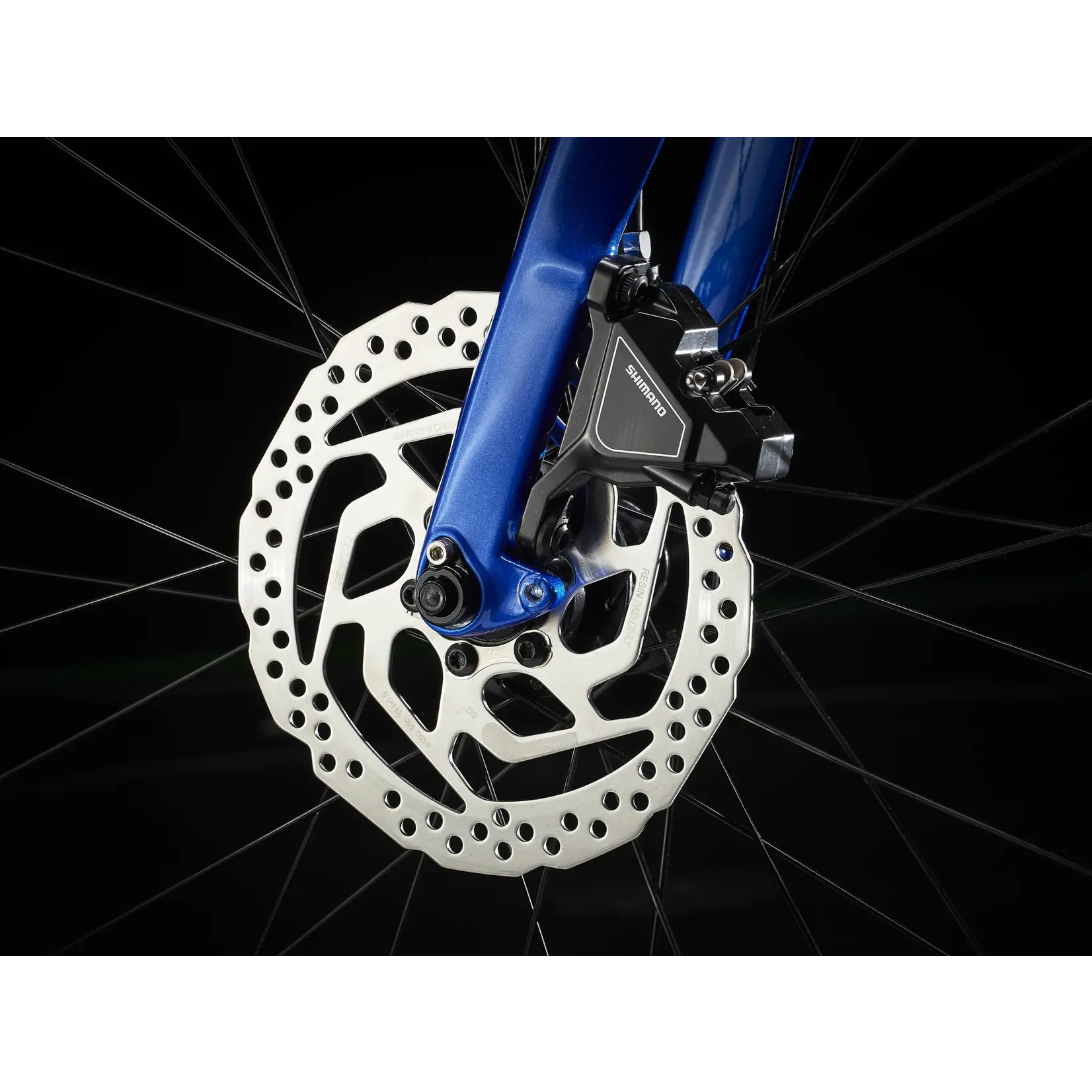

| Brake |
Shimano hydraulic disc, MT201 lever, UR300 calliper |
| Brake rotor |
Shimano RT26, 6-bolt,160 mm |
| Rotor size |
Max brake rotor sizes: 160mm front & rear |
| Weight |
M - 11.38 kg / 25.09 lbs |
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
